Description
Features :
Highly Reliable and Lightweight
- Outstanding heat dissipation thanks to the die cast aluminum construction.
- The bearing is on the outside of the impeller which lowers the bearing temperature.
Operates at Various Voltages
- A single standard unit is compatible with various operating voltages.
50Hz:185 to 225V,320 to 390V。
60Hz:200 to 240V,345 to 415V。
Meets the Demands of World Markets
- Clears CE (RoHS2) and UL standards.
Water and Dust Resistant Motor
- IP(JP)55
Oil-Free, Non-Polluting
- There is absolutely no contact between the housing and impeller so lubrication is not necessary.

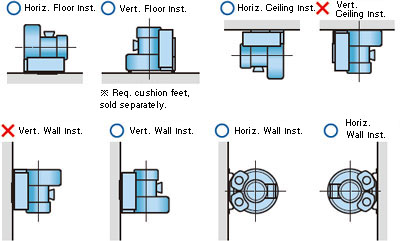

Complete Freedom of Installation Orientation
Specifications :
| Model
2BH1- |
Power Supply | Motor Output (kW) |
Exhaust Pressure (kPa) ※1 |
Degree of Vacuum (kPa) ※1 |
Flow Rate (L/min) ※2 |
Current Rating (A) 200V |
Noise Level (dB) ※3 |
Mass (kg) |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | ||
| 300- 7AH11 |
Δ(Delta) Wiring 185 to 225V Y (Star) Wiring 320 to 390V |
Δ(Delta) Wiring 200 to 240V Y (Star) Wiring 345 to 415V |
0.4 | 0.5 | 12.7 | 14.7 | 11.8 | 14.7 | 1300 | 1480 | 2.7 | 2.7 | 58 | 61 | 9.0 |
| 490- 7AH11 |
0.6 | 0.85 | 11.6 | 14.7 | 10.5 | 13.1 | 2320 | 2830 | 3.0 | 4.2 | 63 | 64 | 14.0 | ||
| 400- 7AH21 |
1.3 | 1.5 | 20.0 | 23.0 | 17.0 | 21.5 | 2320 | 2830 | 6.9 | 7.4 | 63 | 64 | 16.0 | ||
| 500- 7AH11 |
1.3 | 1.5 | 13.2 | 12.7 | 13.5 | 13.5 | 3470 | 4130 | 6.9 | 7.4 | 70 | 73 | 20.0 | ||
| 500- 7AH21 |
1.6 | 2.05 | 19.6 | 21.4 | 20.1 | 22.5 | 3470 | 4130 | 9.0 | 8.8 | 70 | 73 | 21.0 | ||
| 500- 7AH31 |
2.2 | 2.55 | 27.5 | 28.0 | 22.0 | 26.0 | 3470 | 4130 | 11.3 | 10.4 | 70 | 73 | 24.0 | ||
| 600- 7AH11 |
2.2 | 2.55 | 19.0 | 16.0 | 19.5 | 17.0 | 5250 | 6250 | 11.3 | 11.4 | 72 | 76 | 29.0 | ||
| 600- 7AH21 |
3.0 | 3.45 | 26.8 | 24.5 | 25.0 | 25.5 | 5250 | 6250 | 13.8 | 13.8 | 72 | 76 | 34.0 | ||
| 600- 7AH31 |
4.0 | 4.6 | 34.0 | 32.0 | 27.0 | 31.5 | 5250 | 6250 | 17.0 | 17.0 | 72 | 76 | 49.0 | ||
| 640- 7GH51 |
7.5 | 8.6 | 28.0 | 26.0 | 24.0 | 26.0 | 8670 | 10170 | 32.0 | 33.0 | 76 | 80 | 86.0 | ||
- Outlet Flange
Model Suffix 2BH1-□-□-G□
G1: No Flange
G2: Incl. 1 Screw Flange
G3: Incl. 2 Screw Flanges
G4: Incl. 1 Hose Flange
G5: Incl. 2 Hose Flanges
- Indicates pressure level at which continuous operation is possible.
- Indicates max. air flow rate. (Static pressure: 0 kPa.)
- Actual operating noise measured on a new pump with the ORION recommended motor running under vacuum/pressure conditions. Operating noise level is from a position of 1 m in front of the unit and at a height of 1 m.
- Please choose one of the inlet/outlet flange options from G1 to G5 when making your order.
- Permissible ambient temperature range: 0 to 40 ℃, under normal humidity (65 ±20%).
- Specifications tolerance range: ±10%.
- Permissible power supply voltage fluctuation: rated voltage ±5%.
- Please install an overload protection device (such as a thermal relay). Use the current rating listed on the motor nameplate as a guide when setting the protection device.
- Always operate with a relief valve to ensure that the discharge pressure and degree of vacuum noted in the specifications chart are not exceeded. Failure to do so can lead to motor overload, burnout, and/or locking-up of the blower.
- Always operate with an air filter to ensure that foreign matter is removed. Failure to do so can lead to trouble from the accumulation of particulate within the close tolerance sections of the product.
External Diagram (Units: mm) :
Power Graphs :

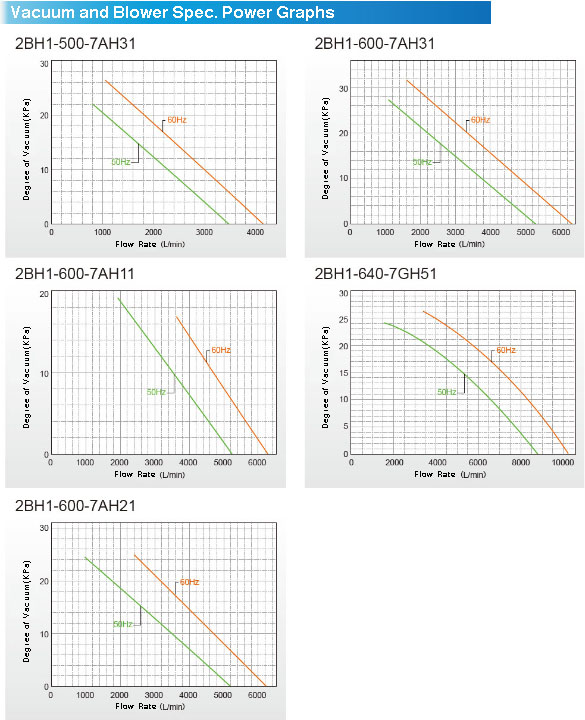

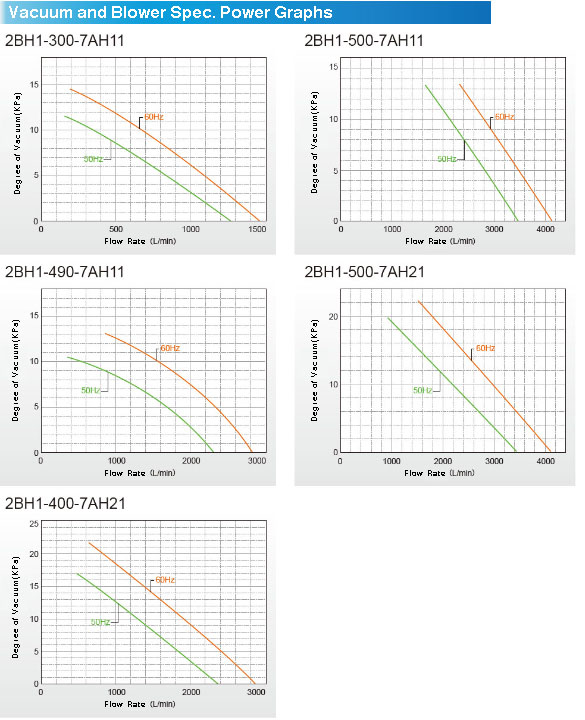

Vacuum and Blower Spec. Power Graphs (2BH1-300-7AH11 to 2BH1-500-7AH21)

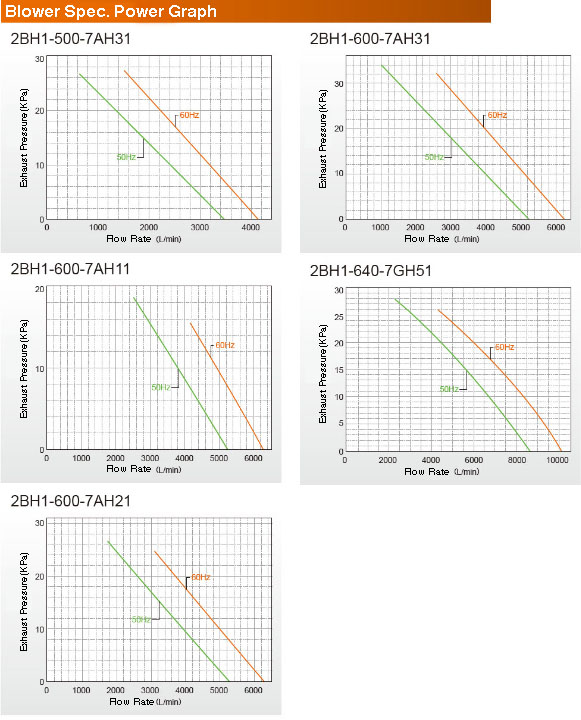

Vacuum Spec. Power Graphs (2BH1-500-7AH31 to 2BH1-600-7AH21)
Accessories :

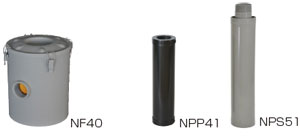

| Model | Intake Filter | Air Muffler (Intake/Exhaust Silencer) |
|---|---|---|
| 2BH1-300-7AH11 | NF40 | NPP41 |
| 2BH1-400-7AH11 | ||
| 2BH1-400-7AH21 | ||
| 2BH1-500-7AH11 | NPS51 | |
| 2BH1-500-7AH21 | ||
| 2BH1-500-7AH31 | ||
| 2BH1-600-7AH11 | ||
| 2BH1-600-7AH21 | ||
| 2BH1-600-7AH31 | ||
| 2BH1-640-7GH51 | VF500 |
- In order to remove foreign matter, always install and operate an intake filter (one of the available accessories) with the Side Channel Blower. Failure to operate with an intake filter can lead to trouble from particulate clogging within the close tolerance internal parts of the product.
- The above-mentioned intake filter, air muffler and other products are general-purpose items that can work with other devices and will require a bushing or other part to adapt to the required connection diameter. Please contact us for details.
Regarding Piping Installation
A flange set and relief valve are required when installing 2BH models.
Please see our catalog of Dry Vacuum Pumps and Blowers for details.
