Description
Product Description :
MODEL INDENTIFICATION
JKS – 2008 – 2 – F – F – V – B – D
1 2 3 4 5 6 7 8
| 1.MODEL | JKS |
| 2.CORE NUMBER | 2006-20”*6PCS; 2008-20”*8PCS; 2012-20”*12PCS; 2018-20”*18PCS |
| 3.POWER OF PUMP | 1-1HP; 2-2HP; 3-3HP; |
| 4.MATERIAL OF FILTER BODY | F-PP P-PVDF |
| 5.TYPE OF IN/OUTLET | U-UNION F-FLANGE |
| 6.MATERIAL OF RUBBER | V -VITON |
| 7.TYPE OF FILTER CORE | B- Lock core filter C-Pressure core filter P-Paper filter K-Bellow filter |
| 8.CONTROL VALVE | S-Can control to just operate single -towerD-Just can double-tower operate in the same time |
Feature:

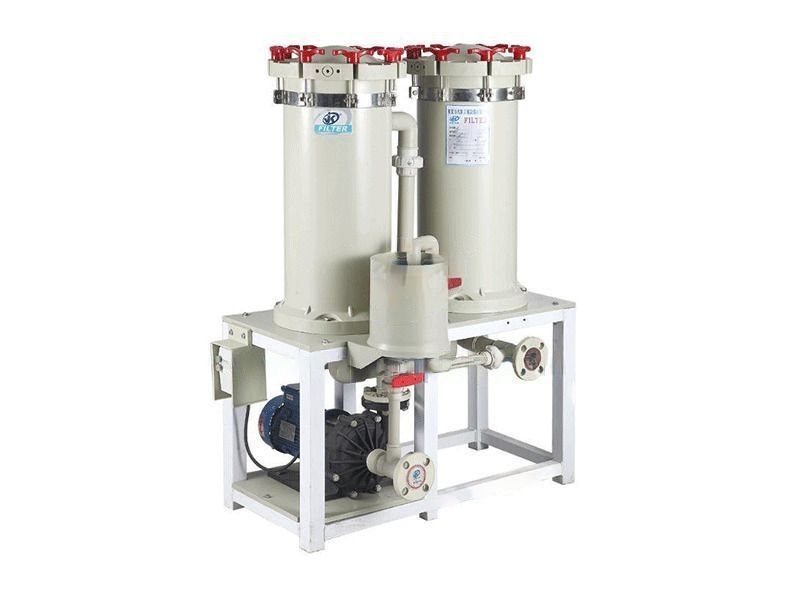

1. Design of double tower filter housing,bigger impurity will filter via first tower,and the second tower will filter higher precision,so the quality of fluid is more clear and stable;
2. Multi -function filtering operation,one way is 2 tower operate simultaneously,the other way is install controlling valve to shut down one tower,just operate single tower;
3. When the filter cores of the first tower was designed by filter bag,the first tower can be closed then the fluid to the second tower be filtered by controlling the first tower valve.
It is not necessary to stop the operating that the first tower can be cleaned internal part and exchange the filter cores;
4. When the filter core of first tower designed with lock core filter ,pressure core filter ,bellow filter and paper filter which can be controlled the valve to close the second tower and the liquid flowed to the first tower be filtered,it is no need to stop the operating that can clean the internal of second tower and exchange the filter cores,above mentioned actions cannot influence the first operation and pollute the fluid;
5. The maximum operating temperature cannot exceed 70℃;
6. The material of the filter housing are made from PP and PVDF;
7. Widely used in metal finishing, electroplating, waste water treatment, PCB manufacturer, industrial cleaning and other industries;
Specifications :
| Model | JKS-2006-1 | JKS-2008-2 | JKS-2012-2 | JKS-2018-3 |
| APPLICABLE ELECTRODE PLATED TANK | 1-2 Ton | 1.5-3 Ton | 2.5-4 Ton | 4-6.5 Ton |
| Filter capacity(L/min) | 150 | 200 | 250 | 330 |
| Motor of pump | 1HP | 1-2HP | 2HP | 3HP |
| Material of filter housing | PP | PP | PP | PP |
| Filter material of the first tower: | ||||
| Lock core filter | 20″*6 | 20”*8 | 20″*12 | 20”*18 |
| Pressure core filter | 20″*6 | 20”*8 | 20″*12 | 20”*18 |
| Paper filter | 195*45 pcs | 234*40 pcs | 370*40 pcs | 370*40 pcs |
| Filter material of the second tower: | ||||
| Filter cartridge double-layer activated carbon | ||||
| Lock core filter | 20″*6 | 20”*8 | 20″*12 | 20”*18 |
| Pressure core filter | 20″*6 | 20”*8 | 20″*12 | 20”*18 |
| Temperature | 70℃ | 70℃ | 70℃ | 70℃ |
| In-outlet(Inch) | ½” | 1″ | 1″ | 2” |
| Filter capacity(L/min) | 150 | 200 | 250 | 330 |
| Weight(kg) | 125 | 135 | 150 | 165 |
Features :
1. Design of double tower ,bigger impurity will filter via first tower,and then second tower will filter higher precision,so the quality of fluid is more clear and stable;
2. Multi -function filtering operation,one way is 2 tower operate simultaneously,the other way is install controlling valve to shut down one tower,just operate single tower;
3. When the filter cores of the first tower was designed by filter bag,the first tower can be closed then the fluid to the second tower be filtered by controlling the first tower valve.
It is not necessary to stop the operating that the first tower can be cleaned internal part and exchange the filter cores;
4. When the filter core of first tower designed with lock core filter ,pressure core filter ,bellow filter and paper filter which can be controlled the valve to close the second tower and the liquid flowed to the first tower be filtered,it is no need to stop the operating that can clean the internal of second tower and exchange the filter cores,above mentioned actions cannot influence the first operation and pollute the fluid;
5. The maximum operating temperature cannot exceed 70℃;
6. The material of the filter housing are made from PP and PVDF;
7. Widely used in metal finishing, electroplating, waste water treatment, PCB manufacturer, industrial cleaning and other industries;
Application :
The double tower filter widely used in metal finishing, electroplating, waste water treatment, PCB manufacturer, industrial cleaning and other industries;
