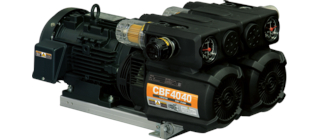

Description
Specifications :
| Model CBF1515- | VB-01B | VB-04B ※3 | VBVB-01B | VBVB-04B ※3 | |
|---|---|---|---|---|---|
| Designed Pumping Capacity (50/60 Hz) ※1 | L/min | Pump 1 (V): 235/280 Pump 2 (V)：235/280 |
Pump 1 (V,B): 235/280 Pump 2 (V,B)：235/280 |
||
| Continuous Operating Vacuum (V) ※2 | kPa (min.) | 60 | – | ||
| Continuous Operating Pressure (B) ※2 | kPa (min.) | 60 | – | ||
| Continuous Combined Operating Vaccum & Pressure (VB) | kPa | – | Recom. ※5, Max. ※6 | ||
| Piping Connection Size | Rc 3/4 | ||||
| Voltage (50/60 Hz) | V | 3-phase 200/ 3-phase 200, 220, 230 |
3-phase 380, 400, 415/ 3-phase 400, 440, 460 |
3-phase 200/ 3-phase 200, 220, 230 |
3-phase 380, 400、415/ 3-phase 400, 440, 460 |
| Standard Motor Current Rating (50/60 Hz) | A | 3.8/ 3.4, 3.4, 3.4 |
2.0, 1.9, 1.9/ 1.7, 1.7, 1.7 |
3.8/ 3.4, 3.4, 3.4 |
2.0, 1.9, 1.9/ 1.7, 1.7, 1.7 |
| Noise Level (50/60 Hz) ※4 | dB | 62/63 | 65/66 | ||
| Motor | kW | 0.75 | |||
| Mass | kg | 37 | |||
| Model CBF1515- | VV-01B | BB-01B | |
|---|---|---|---|
| Designed Pumping Capacity (50/60 Hz) ※1 | L/min | Pump 1 (V): 235/280 Pump 2 (V)：235/280 |
Pump 1 (B): 235/280 Pump 2 (B)：235/280 |
| Continuous Operating Vacuum (V) ※2 | kPa (min.) | 60 | – |
| Continuous Operating Pressure (B) ※2 | kPa (min.) | – | 60 |
| Continuous Combined Operating Vaccum & Pressure (VB) | kPa | – | |
| Piping Connection Size | Rc 3/4 | ||
| Voltage (50/60 Hz) | V | 3-phase 200/ 3-phase 200, 220, 230 | |
| Standard Motor Current Rating (50/60 Hz) | A | 3.8/3.4, 3.4, 3.4 | |
| Noise Level (50/60 Hz) ※4 | dB | 61/62 | 65/66 |
| Motor | kW | 0.75 | |
| Mass | kg | 37 | |
| Model CBF2525- | VB-01B | VB-04B ※3 | VBVB-01B | VBVB-04B ※3 | |
|---|---|---|---|---|---|
| Designed Pumping Capacity (50/60 Hz) ※1 | L/min | Pump 1 (V): 405/480 Pump 2 (V)：405/480 |
Pump 1 (V,B): 405/480 Pump 2 (V,B)：405/480 |
||
| Continuous Operating Vacuum (V) ※2 | kPa (min.) | 60 | – | ||
| Continuous Operating Pressure (B) ※2 | kPa (min.) | 60 | – | ||
| Continuous Combined Operating Vaccum & Pressure (VB) | kPa | – | Recom. ※5, Max. ※6 | ||
| Piping Connection Size | Rc 3/4 | ||||
| Voltage (50/60 Hz) | V | 3-phase 200/ 3-phase 200, 220, 230 |
3-phase 380, 400, 415/ 3-phase 400, 440, 460 |
3-phase 200/ 3-phase 200, 220, 230 |
3-phase 380, 400、415/ 3-phase 400, 440, 460 |
| Standard Motor Current Rating (50/60 Hz) | A | 6.8/ 6.4, 6.0, 6.0 |
3.5, 3.4, 3.4/ 3.2, 3.0, 3.0 |
6.8/ 6.4, 6.0, 6.0 |
3.5, 3.4, 3.4/ 3.2, 3.0, 3.0 |
| Noise Level (50/60 Hz) ※4 | dB | 64/67 | 67/70 | ||
| Motor | kW | 1.5 | |||
| Mass | kg | 52 | |||
| Model CBF2525- | VV-01B | BB-01B | |
|---|---|---|---|
| Designed Pumping Capacity (50/60 Hz) ※1 | L/min | Pump 1 (V): 405/480 Pump 2 (V)：405/480 |
Pump 1 (B): 405/480 Pump 2 (B)：405/480 |
| Continuous Operating Vacuum (V) ※2 | kPa (min.) | 60 | – |
| Continuous Operating Pressure (B) ※2 | kPa (min.) | – | 60 |
| Continuous Combined Operating Vaccum & Pressure (VB) | kPa | – | |
| Piping Connection Size | Rc 3/4 | ||
| Voltage (50/60 Hz) | V | 3-phase 200/ 3-phase 200, 220, 230 | |
| Standard Motor Current Rating (50/60 Hz) | A | 6.8/6.4, 6.0, 6.0 | |
| Noise Level (50/60 Hz) ※4 | dB | 63/66 | 67/70 |
| Motor | kW | 1.5 | |
| Mass | kg | 52 | |
| Model CBF4040- | VB-01B | VB-04B ※3 | VBVB-01B | VBVB-04B ※3 | |
|---|---|---|---|---|---|
| Designed Pumping Capacity (50/60 Hz) ※1 | L/min | Pump 1 (V): 575/685 Pump 2 (V)：575/685 |
Pump 1(V,B): 575/685 Pump 2 (V,B)：575/685 |
||
| Continuous Operating Vacuum (V) ※2 | kPa (min.) | 60 | – | ||
| Continuous Operating Pressure (B) ※2 | kPa (min.) | 60 | – | ||
| Continuous Combined Operating Vaccum & Pressure (VB) | kPa | – | Recom. ※5, Max. ※6 | ||
| Piping Connection Size | Rc 3/4 | ||||
| Voltage (50/60 Hz) | V | 3-phase 200/ 3-phase 200, 220, 230 |
3-phase 380, 400, 415/ 3-phase 400, 440, 460 |
3-phase 200/ 3-phase 200, 220, 230 |
3-phase 380, 400、415/ 3-phase 400, 440, 460 |
| Standard Motor Current Rating (50/60 Hz) | A | 10.6/ 9.4, 9.2, 9.2 |
5.3, 5.3, 5.4/ 4.7, 4.6, 4.6 |
10.6/ 9.4、9.2、9.2 |
5.3, 5.3, 5.4/ 4.7, 4.6, 4.6 |
| Noise Level (50/60 Hz) ※4 | dB | 68/70 | 69/71 | ||
| Motor | kW | 2.2 | |||
| Mass | kg | 67 | |||
| Model CBF4040- | VV-01B | BB-01B | |
|---|---|---|---|
| Designed Pumping Capacity (50/60 Hz) ※1 | L/min | Pump 1 (V): 575/685 Pump 2 (V)：575/685 |
Pump 1 (B): 575/685 Pump 2 (B)：575/685 |
| Continuous Operating Vacuum (V) ※2 | kPa (min.) | 60 | – |
| Continuous Operating Pressure (B) ※2 | kPa (min.) | – | 60 |
| Continuous Combined Operating Vaccum & Pressure (VB) | kPa | – | |
| Piping Connection Size | Rc 3/4 | ||
| Voltage (50/60 Hz) | V | 3-phase 200/ 3-phase 200, 220, 230 | |
| Standard Motor Current Rating (50/60 Hz) | A | 10.6/9.4, 9.2, 9.2 | |
| Noise Level (50/60 Hz) ※4 | dB | 67/69 | 71/73 |
| Motor | kW | 2.2 | |
| Mass | kg | 67 | |
- Designed pumping capacity: Theoretical value calculated from cylinder volume. Refer to “Performance Data” for actual flow rate.
- Operable range of vacuum (pressure).
- “04” models are special order items.
- Operating noise measured on a new pump with an ORION recommended motor running at normal vacuum/pressure conditions. Operating noise levels are from a position of 1 m in front of the unit and at a height of 1 m.
- Recommended range of combined vacuum and pump pressures: 60 or lower.
- Maximum vacuum/pressure per pump can be any combination of the following (vacuum/pressure): 55/20, 55/30, 40/40, 35/50. The maximum vacuum/pressure of the dry pump indicates the maximum sustainable vacuum/pressure. Do not operate the pump beyond this maximum value. Doing so can reduce the lifespan of the pump and may result in breakdown or an accident.
- Please consult with your dealer regarding operation in extremely dry environments, as doing so may lead to pump damage.
- Allowable intermittent power supply voltage fluctuation range is +10% of the specified voltage, allowable sustained supply voltage fluctuation range is +5% of the specified voltage.
- When using other than the ORION standard motor, follow the electrical guidelines printed on the nameplate of the motor used.
- Please install an overload protection device (such as a thermal relay).

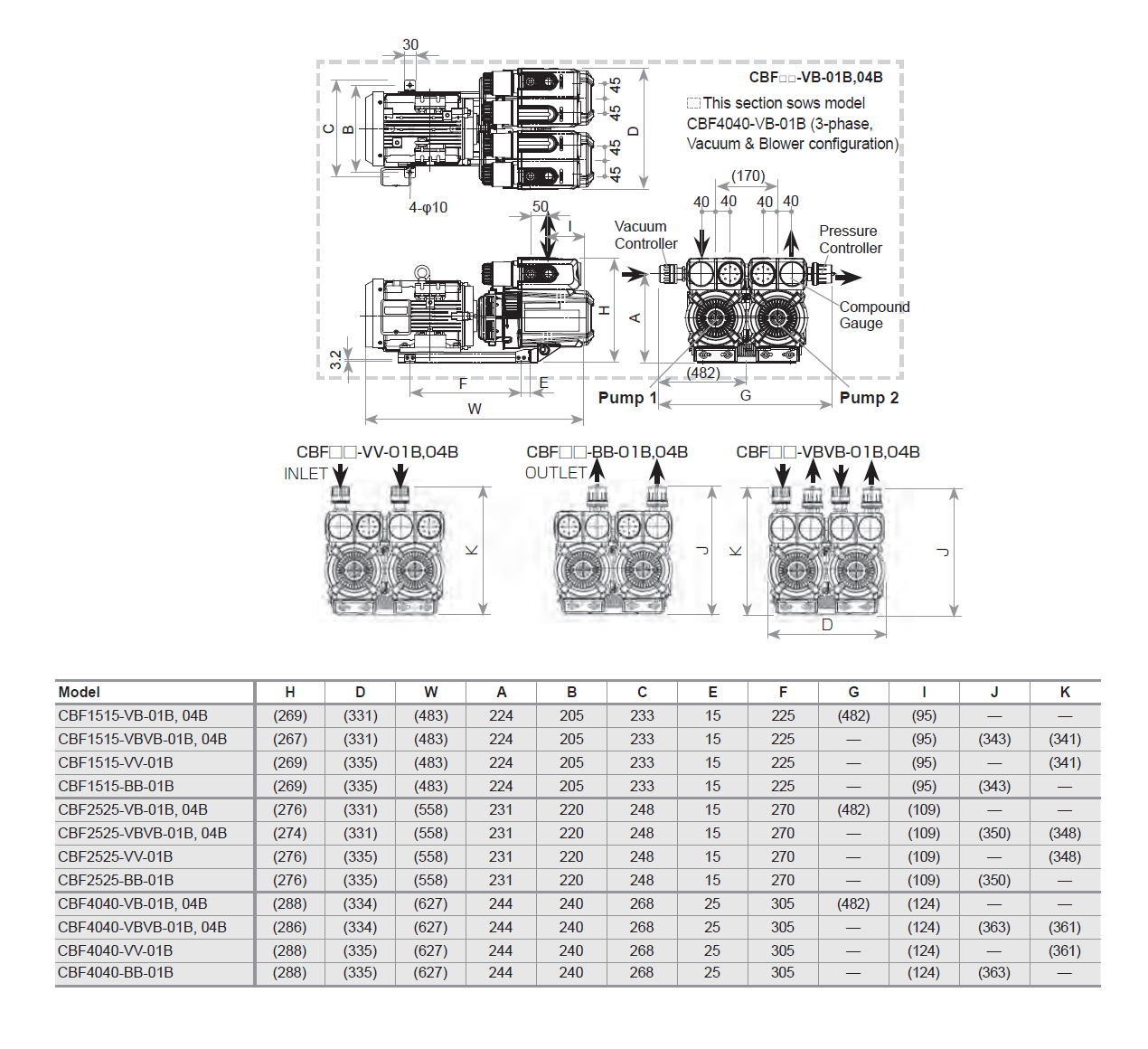

External Dimension (Units: mm) :
Performance Date :

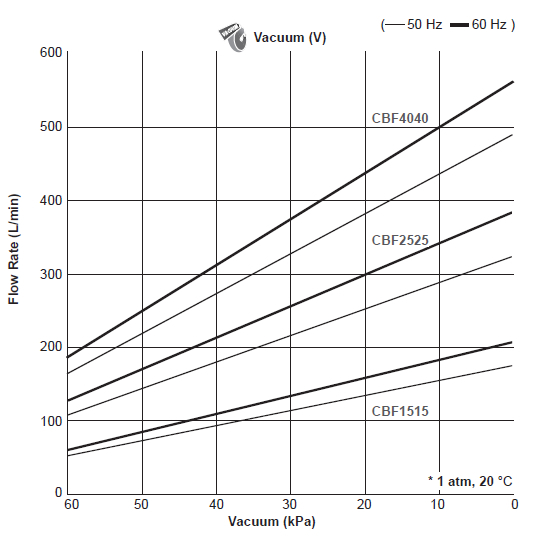

Vacuum

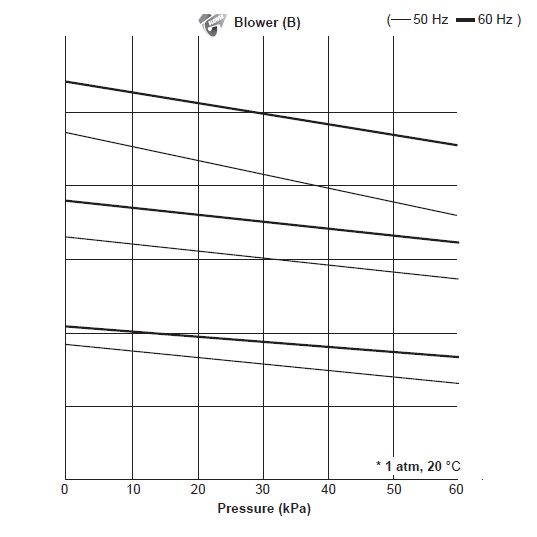

Blower
