Description
Product Description :
MODEL INDENTIFICATION
JK – 1001 – F – U – E – B – J – S – MP-30R
1 2 3 4 5 6 7 8 9
| 1.MODEL | JK |
| 2.CORE NUMBER | 1001-10″×1PCS,2001-20″×1PCS1004-10″×4PCS,2004-20″×4 PCS; |
| 3.MATERIAL OF FILTER BODY | F- PP P -PVDF |
| 4.TYPE OF IN/OUTLET | U-UNION F-FLANGE |
| 5.MATERIAL OF SEAL PACKING | E- EPDM V -VITON |
| 6.TYPE OF FILTER CORE | B- Lock core filter C-Pressure core filter |
| 7.SPECIFICATION OF IN/OUTLER | J -JIS D- DIN A- ANSI |
| 8.MATERIAL OF CLAMP | S-SUS316 T-Ti(Titanium) |
| Model of magnetic drive pump: MP-30R, MP40R, MP-70RM , MP-100RM | |
What is a chemical filter?
Chemical liquid filters are utilities that separate substances in a flow from each other. Chemical filters can be used for many purposes, including water purification, raw materials processing and the filtration of ingredients in industrial processes.
Advantages of filter:
“No leakage High precision filtration”
(1) High-precision filtration, wide filtration area and high efficiency;
(2) Simple operation, easy cleaning, easy maintenance;
(3) Safe and stable, low filtration cost;

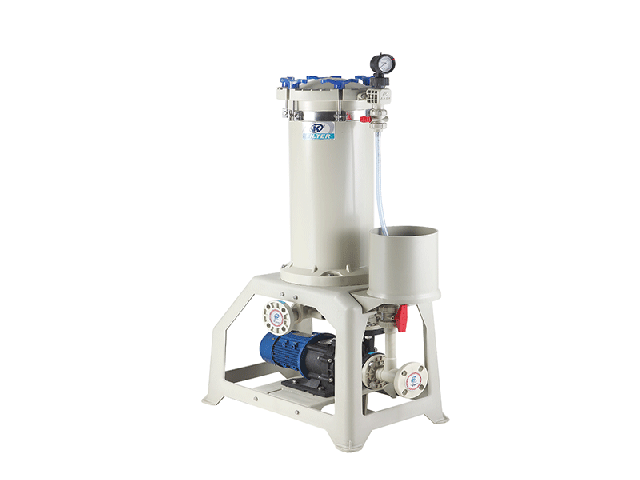

The main structure and working principle of JK’s chemical filter:
The cartridge of the chemical filter is composed of a shell, a filter screen, a cover structure, and an automatic slag discharge device. Among them, the filter screen is composed of multiple stainless steel wire meshes, which are installed on the central collecting pipe and disassembled. Cleanup is very convenient.
When the filter is filtered, the filtrate containing filter aid enters the filter through the conveying system (pump or other tools), so that a stable filter cake is formed on the filter sheet (the filter cake layer can provide countless micro channels), and the filtrate is ready The actual filtration is carried out through the micropores of the filter cake layer.
Advantages of JK’s chemical filter:
When the chemical filter is working, the liquid medicine is transported into the filter barrel through the power of the pump motor under the filter, and then the particles and impurities in the liquid are absorbed by the filter material in the filter, and the filtered liquid is passed through The filter tube in the filter element flows into the tank for recycling.
Composition: Upper beam ring group-main barrel-pressure gauge group-exhaust valve group-electromagnetic switch-circulation pipeline-dosing tank group-pump-rack attached bottom plate-upper cover-upper cover O ring-filter lock screw Cap-wire wound filter element-filter element lower pad-filter element column tube-filter material group-drain valve component-outlet component-motor cover.
The chemical plating filter is used in electroplating, surface treatment, metal finishing, PCB etching equipment, pharmaceutical environmental protection, etc. Its main function is to filter the electroplating solution during high-temperature electroless nickel plating, and can remove insoluble particles in the electroplating solution.
Specifications :
| Model | JK-1001 | JK-2001 | JK-1004 | JK-2004 | |
|---|---|---|---|---|---|
| For Tank (Liter) | 200 | 400 | 600 | 800 | |
| Filter capacity (L/min) | 15 | 30 | 60 | 80 | |
| Material of filter housing | PP/PVDF | PP/PVDF | PP/PVDF | PP/PVDF | |
| Core Number(size*pcs) | 10″*1 | 20″*1 | 10″*4 | 20″*4 | |
| Temperature | 70℃ | 70℃ | 70℃ | 70℃ | |
| Dimensions(mm) | Length(L) | 510 | 510 | 600 | 600 |
| Width(W) | 310 | 310 | 380 | 380 | |
| Height(H) | 770 | 1010 | 830 | 1080 | |
| In-outlet(Inch) | ½” | ½” | 1″ | 1″ | |
| Model of pump-Magnetic drive pump | MP-30R | MP-40R | MP-70RM | MP-100RM | |
| Motor of pump:50HZ/60HZ | 45W | 65W | 150/180W | 250/260W | |
Features :
1. Filter body design using injected technology. Whole piece from top to bottom without welding. The design concept adopted from integrative mold to increase the intensity of the filter body with projection rib. Injection technology prevents leakages from the filter housing body;
2. The material of the filter body is made from FRPP or PVDF depending on the process requirements;
3. Filter housing can be assemble with self-priming pump or magnetic drive pump which depending on customers requirements;
4. These filtration is excellent application for plating operations, etching operations and other normal chemical operations and pure water;
5. Depending on customer’s requirement, various filter elements for selection and easy to operate:
· Lock core filter
· Pressure core filter
6. The filter system provides high precision with wide area filtering, high efficiency, easy to operate and clean;
7. Titanium (Ti) material clamp set as well can be fitted upon customer request especially operating in chemical corrosive environment.;
8. Standard accessories: union or flange (including packing and PVC screws);
9. Additional add-on accessories: switch (including guard), foot valve, check valve, flow-seeing tube, in/outlet flexible, or filter bag & etc can be purchase;
Application :
Suitable: Chemical liquid filter is widely used in electroplating, chemical, pharmaceutical, electronics, environmental protection, PCB, leather, dyeing and finishing and wastewater treatment industries.
