Description

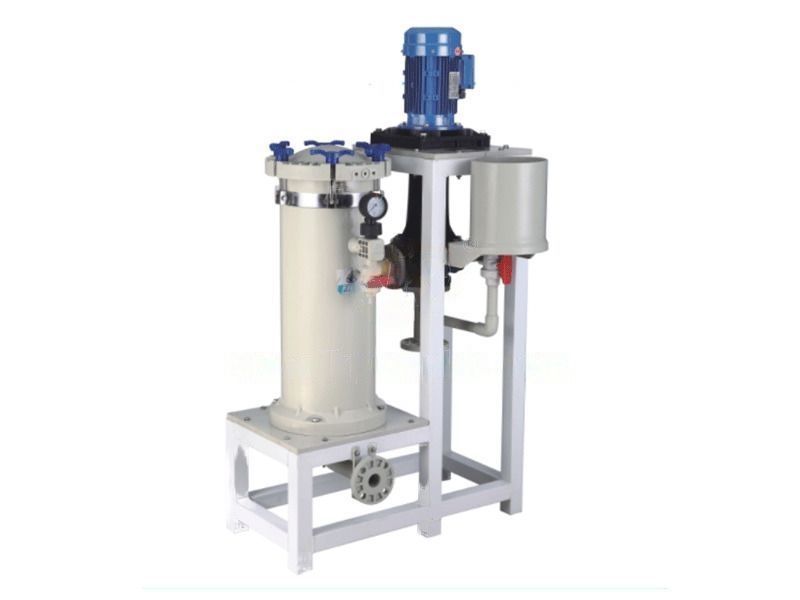

Product Description :
MODEL INDENTIFICATION
JKC – 2006 – 1- P – F – N – C – JKD-2
1 2 3 4 5 6 7 8
Specifications :
| Model | JKC-1004 | JKC-2004 | JKC-2006 | JKC-2008 | JKC-2012 | JKC-2018 |
| Model of pump: vertical pump | JKD-1/3HP | JKD-1/2HP | JKD-1HP | JKD-2HP | JKD-2HP | JKD-3HP |
| Motor of pump | 1/3HP | 1/2HP | 1HP | 2HP | 2HP | 2HP |
| Material of filter housing | FRPP | FRPP | FRPP | FRPP | FRPP | FRPP |
| Core Number(size*pcs) | 10”*4 | 20″*4 | 20”*6 | 20″*8 | 20”*12 | 20”*18 |
| FILTER AREA(㎡) | 0.2 | 0.4 | 0.6 | 0.8 | 1.2 | 1.8 |
| Temperature | 70℃ | 70℃ | 70℃ | 70℃ | 70℃ | 70℃ |
| In/Outlet | 1.5”*1” | 1.5”*1” | 2”*1.5” | 2” | 2” | 2” |
| Filter capacity(L/min) | 60 | 80 | 160 | 240 | 330 | 375 |
| Weight(kg) | 40 | 42 | 62 | 68 | 80 | 92 |
Features :
1. Excellent application to circulate filter operation for plating liquid,chemical liquid and pure water;
2. The filter housing manufacturer from FRPP;
3. FRPP material filter body temperature bellow 70℃;
4. The nickel-plated filter housing can be assemble with chemical vertical pump -JKD series;High temperature material choice for PVDF,Ordinary choice for FRPP;
5. Standard accessories: Union or flange (including packing and PVC screws);
6. Additional add-on accessories: switch(including guard),foot valve, check valve, flow-seeing tube, in/outlet flexible, or filter bag & etc can be purchase;
Application :
Application to circulate filter operation for plating liquid, chemical liquid and pure water;
