Description
Product Description :
MODEL INDENTIFICATION
JKL – 2006 – P – P – P – V – B – MPH
1 2 3 4 5 6 7 8
| 1.MODEL | JKL |
| 2.CORE NUMBER | 2004-20”*4PCS; 2006-20”*6PCS;2008-20”*8PCS; 2012-20”*12PCS;2018-20”*18PCS |
| 3.MATERIAL OF FILTER BODY | P -PVC F-PVDF |
| 4.MATERIAL OF PUMP | P -PVDF |
| 5.TYPE OF IN/OUTLET | U-UNION F-FLANGE |
| 6.MATERIAL OF RUBBER | V -VITON |
| 7.TYPE OF FILTER CORE | B- Lock core filter |
| 8.MODEL OF PUMP | Self priming pump -JKB,Magnetic drive pump-MP/MPH |

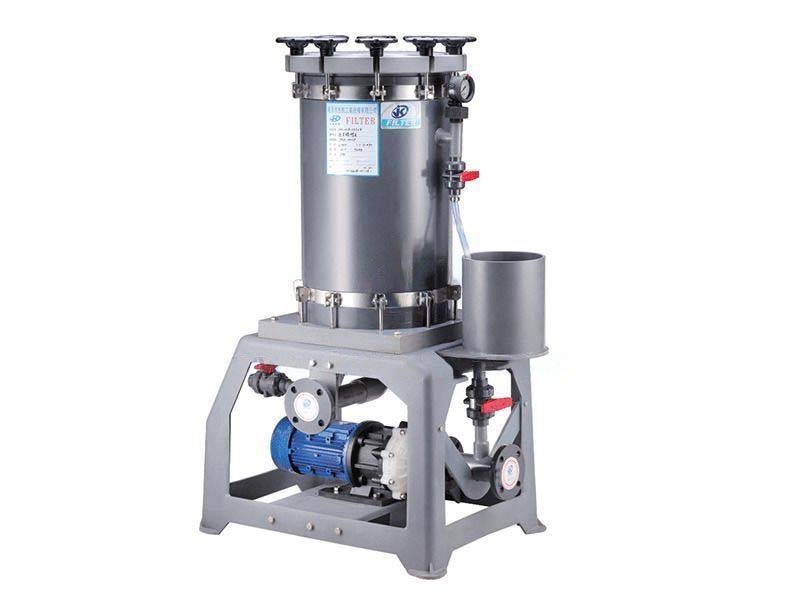

What is a chromic acid precision filter?
Chromic acid is a strong acid that can be prepared in chromic acid precision filter, this filter is applicable for circulating filtration of chromic acid plating solution;
PVC or PVDF chemical filter system for chromic acid;
What material makes a good filter housing?
The chemical filter housing materials: PP, PVDF, Ctransparent Acrylic, ETFE, CPVC, Stainless steel 304#/316# and Ti.
Material depending on your solution; How acidic the solution is? How many % acidic?
●Alkaline solutions can use PP or PVDF;
●Acidic prefer PP or CPVC;
●Chromic acid can use PVC or PVDF;
FEATURES:
1.The material of the filter housing are made from PVC or PVDF, suited for chromium ,acid or other liquid;
2.The chromic acid filter is used in electroplating, surface treatment, metal finishing, PCB etching equipment, pharmaceutical environmental protection, etc;
Its main function is to filter hexavalent chromium chromic acid solution and other highly corrosive chemical solutions, which can remove Insoluble particulate impurities;
3.Filter housing can be assemble with magnetic drive pimp(MP series or MPH series),self priming pump (JKB series), which depending on customers requirements; The pump body material is PVDF;
4.Design of lock core filter, so inside of filter body is no metals;
5.The filter provides high precision with wide area filtering high efficiency, easy to operate and clean;
6.The maximum operating temperature cannot exceed 60℃;
7.Standard accessories: Union or flange, including packing and PVC screws;
Specifications :
| Model | JKL-2004 | JKL-2006 | JKL-2008 | JKL-2012 | JKL-2018 | |
| Model of pump | MP/MPH | MPH/JKB | MPH/JKB | MPH/JKB | MPH/JKB | |
| Motor of pump | 1/3HP | 1HP | 1-2HP | 2HP | 3HP | |
| Material of filter housing | PVC | PVC | PVC | PVC | PVC | |
| Core Number(size*pcs) | 20”*4 | 20″*6 | 20”*8 | 20″*12 | 20”*18 | |
| FILTER AREA(㎡) | 0.4 | 0.6 | 0.8 | 1.2 | 1.8 | |
| APPLICABLE ELECTRODE PLATED TANK | 800 L | 1-2 Ton | 1.5-2.5 Ton | 2.5-4 Ton | 4-6.5 Ton | |
| Temperature | 60℃ | 60℃ | 60℃ | 60℃ | 60℃ | |
| In/Outlet | 1” | 1.5” | 1.5” | 1.5” | 2” | |
| Dimensions(mm) | Length(L) | 573 | 785 | 785 | 865 | 865 |
| Width(W) | 360 | 487 | 487 | 625 | 625 | |
| Height(H) | 1185 | 1510 | 1510 | 1555 | 1555 | |
| In-outlet(Inch) | ½” | ½” | 1″ | 1″ | 2” | |
| Filter capacity(L/min) | 80 | 160 | 180 | 220 | 330 | |
| Weight(kg) | 40 | 90 | 100 | 110 | 130 | |
Features :
1.The material of the filter body is made from PVC or PVDF, suited for chromium ,acid or other liquid;
2.The chromic acid filter is used in electroplating, surface treatment, metal finishing, PCB etching equipment, pharmaceutical environmental protection, etc;
Its main function is to filter hexavalent chromium chromic acid solution and other highly corrosive chemical solutions, which can remove Insoluble particulate impurities;
3.Filter housing can be assemble with magnetic drive pimp(MP series or MPH series),self priming pump (JKB series), which depending on customers requirements; The pump body material is PVDF;
4.Design of lock core filter, so inside of filter body is no metals;
5.The filter provides high precision with wide area filtering high efficiency, easy to operate and clean;
6.The maximum operating temperature cannot exceed 60℃;
7.Standard accessories: Union or flange, including packing and PVC screws;
Application :
PVC chemical filter system for chromic acid is best-suited to be used in chemical industry and laboratories for removing unwanted substances from chromic acid in proper manner. Withstanding high temperature, this filter is easy to clean, non corrosive and highly durable;
