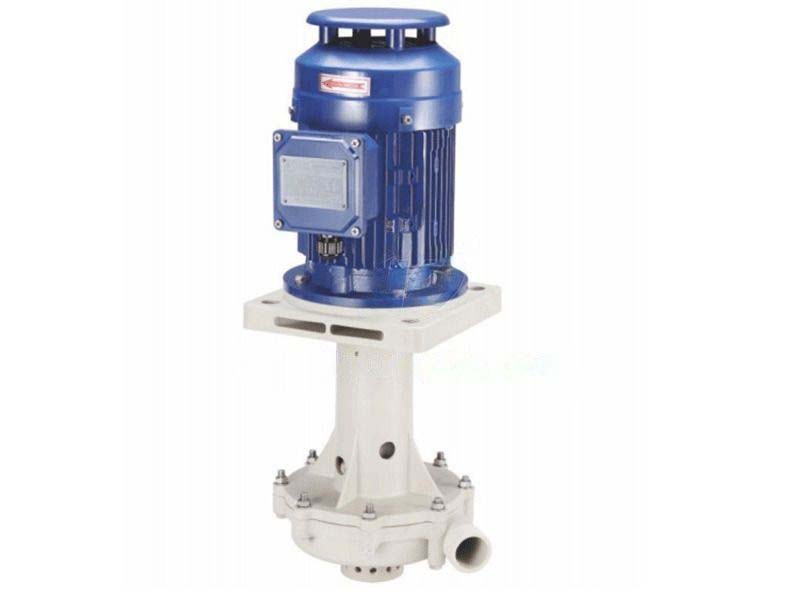

Higher Head And Larger Flow Vertical Pump-JKO

High head and large flow vertical pump-JKO series;

Material: FRPP/PVDF;

Power:1HP,2HP,3HP;

Flow rate:250~380L/min,Head:18.26m~28.25m(50hz);

Excellent chemical resistance;

Application: Chemical or water recirculation, Etching, Spraying, etc;

In-tank use only;

Certification: ISO9001:2015,CE certification, Production & sales intellectual property management system certification;

Description

Product Description :

MODEL INDENTIFICATION

JKO  – 40  –  SK  – 3  –  5  –  V   –  F    – Ti

1       2        3      4      5     6       7      8

1 MODEL JKO
2 IN/OUTLET 40-40*40
3 SPECIFIC GRAVITY SK-1.1
4 POWER 1-1HP 2-2HP 3-3HP
5 FREQUENCY 5-50HZ, 6-60HZ
6 O-RING E-EPDM V-VITON N-NBR
7 MATERIAL F-FRPP P-PVDF
8 SHAFT MATERIAL 4-SUS304 6-SUS316 Ti-Ti

Specifications :

Model SG In/outlet(mm) Max.Head(m) Max.Capacity(L/min) Power(KW)
JKO-40SK-1 1.1 40*40 18.26 250 0.75
JK0-40SK-2 1.1 40*40 25 290 1.5
JKO-40SK-3 1.1 40*40 28.25 380 2.2

Features :

1. JKO series vertical pump is manufactured from higher grade raw material and can be define to FRPP or PVDF;

2. Strong embed impeller with innovative water retaining cover, Higher head, larger flow, made the pump high efficiency-low operating cost;

3. In-tank use only;

4.The motor shaft is designed and install from internally (no extension, no joint) to ensure stability and better performance as well to enable the motor to have longer lifespan;

5.For corrosive environment, it is recommended to use Titanium bolt and nuts and Epoxy paint on motor body to prolong motor lifespan; different brands motor of choice to your needs, for example: QUCHI, TECO ;

6.Vertical acid and alkaline resistant pump: JKO series widely used in chemical or water recirculation, etching, spraying;

7.Max Operating Temperature: FRPP 75℃; PVDF:100℃;

8.1 year warranty;
