Description
Features :
From our Basic Models to our Inverter Models with even Higher Energy Savings

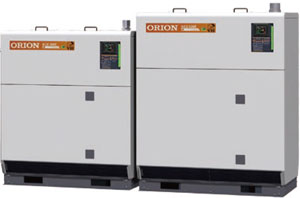

First-in-industry vacuum pump packaged with a built-in inverter.

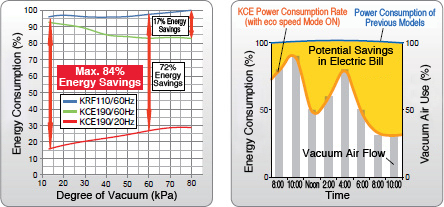

Built-in eco speed® control functionality, and inverter-controlled pump that adapts its operating speed to vacuum-load conditions. Energy savings as high as 84% are possible.
ORION offers vacuum pumps with greater energy savings, longer lifespans, and greater noise reduction.
Our modularization offers improved installation and space savings.
Automatic Recognition of Vacuum Pump Load Conditions
The installation footprint is only 87% compared to our previous model.
Reduced-Noise Construction
Our new-concept low-noise bodies and contactless rotor are effective at providing a low-noise working environment that is easy on workers. Operating noise sounds as if it were cut in half.

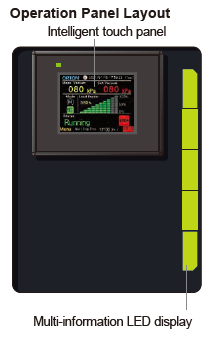

Our intelligent touch panel and multi-information LED display make operation easier and improves visibility.
Easy operation and monitoring by simply touching various settings and operating conditions on the display. And the LED display shows the product operating condition at a glance.

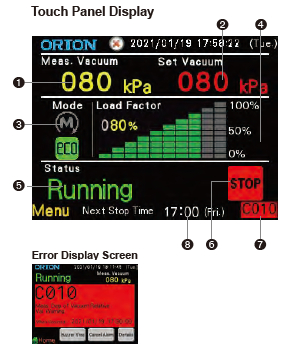

Panel Details and Functions
- Display Measured Degree of Vacuum
- Display Set Degree of Vacuum
- Display Operating Mode
- Display Operating Load
- Display Operating Conditions
- Operation Control Buttons
- Display Alarm Number
- Display Pump Start/Stop Time
LED Display Function
Safety and protection devices in an all-in-one package.
LCD display shows not only error numbers but also the nature of the trouble.
centralized vacuum systems :
KCE-F series comes standard with terminals to connect to the Eco Multi-Box EMB10A-NC-01 (sold separately). Multi-unit control is possible by connecting to the EMB10A-NC-01.
If an increase is desired at a later time, expansion up to 10 pumps is possible with one EMB10-NC-01 unit.
Good for unforeseen situations!
A centralized vacuum system that keeps the vacuum line operating and maintains your factory operating rate even when unforeseen situations crop up.
If the control board malfunctions…
Even if the EMB10A-NC-01 fails due to some sort of trouble, individual vacuum pumps will continue to operate using the controllers built into the vacuum pumps.
If the inverter malfunctions…
If the inverter built into the vacuum pump goes down, continued operation is possible by automatically or manually switching to a commercial power supply. (Not applicable during pump failure.)
The combination of inverter control (eco speed control) and multi-unit control yields optimum operation and greater energy savings.
Optimum flow rate for lines that cannot run off simple ON/OFF control systems.
With the eco speed control and ORION’s Multi-Unit Control System, we can optimally adapt to loads and maintain the optimum vacuum to meet the user’s application.
Accessory (Sold Separately) :

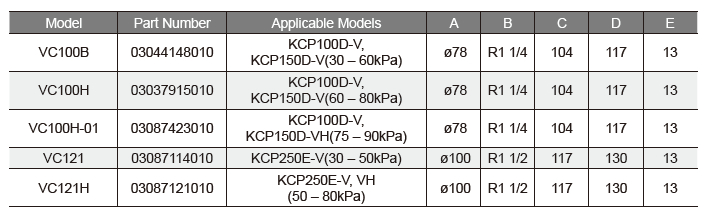

Vacuum Contoller

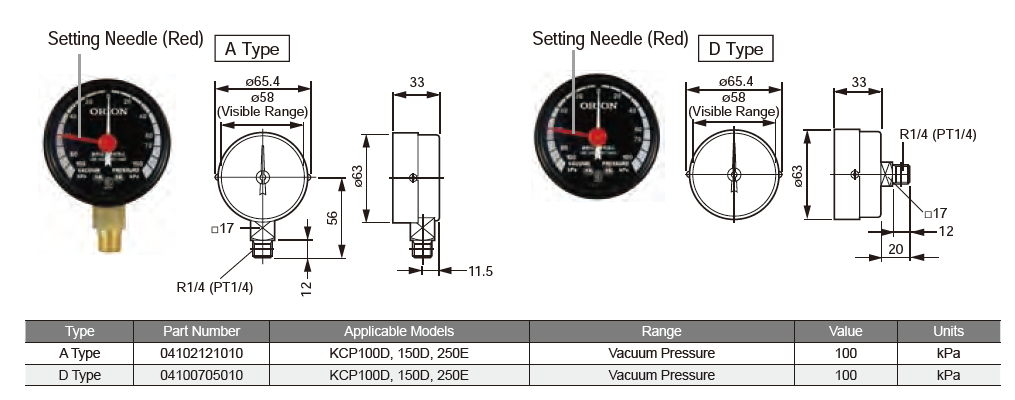

Type A, Type D Compound Gauge
Specifications :
| Standard Models | ||||||
|---|---|---|---|---|---|---|
| KCE190F-V-01 | KCE310F-V-01 | KCE380F-V-01 | KCE620F-V-01 | |||
| KCE190F-V-02 | KCE310F-V-02 | KCE380F-V-02 | KCE620F-V-02 | |||
| Motor Output | kW | 3.7 | 5.5 | 7.4 | 11 | |
| Flow Rate※1 | m3/h | 192 | 308 | 384 | 616 | |
| m3/min | 3.2 | 5.1 | 6.4 | 10.3 | ||
| Continuous Operating Vacuum※2 | 0 to 80 | |||||
| Ultimate vacuum※2 | kPa | 94 or higher | ||||
| Operating Noise Level※3 | dB | 65 | 71 | 68 | 74 | |
| Piping Connection Size | Rc1 1/2 | Rc2 | Rc3 | |||
| Mass※4 | kg | 345 | 520 | 545 | 800 | |
| Motor | Rated Voltage And Fiequency※5 | Three-phase 200V-50/60Hz 220V-60Hz | ||||
| Output, Number of Units | 3.7KW ・ 2P×1 unit | 5.5kW ・ 2P×1 unit | 3.7kW ・ 2P×2 units | 5.5KW ・ 2P×2 units | ||
| Specifications | Top Runner compliant high efficiency motors. | |||||
| Working Environment |
Place of Installation | Indoors | ||||
| Allowable Ambient Temperature※6 | ℃ | 5 to 40 | ||||
| Allowable Ambient Humidity | 65 ± 20%RH(JIS Z8703) | |||||
| Operable Elevation※7 | m | 1000 or lower | ||||
| Control Method | Built-in load detecting automatic speed control circuit. | |||||
| Automatic Speed Control Range | Hz | 20 to 60 | ||||
| Recommended Overhaul Cyde | h | 20000 | 30000 | 20000 | 30000 | |
- This is the designed flow rate based on the finder volume of the pump. Confirm the actual low rate based on the pressure-flow diagram.
- Under ambient pressure of 1 atm. When operating at high elevations, there will be a difference in operating pressure from operation at a location under 1 alm of pressure. The calculation to measure the ultimate vacuum while operating at other elevations is as follows: Ultimate Vacuum Under Pressure (Simplified) [kPa) = Specried Ultimate Degree of Vacuum [Pal – Alflude ] X 0.0115 Pam.
- Operating noise measured at an operating vacuum of 80 kPa, and is not a quaranteed value.
- The specification includes casters and the mass including the casters will be the noted mass plus an aditional 5 kg KCER20F an additional 10 ko for KCE 620.
- The power supply voltage must not have intermittent fluctuations greater than 10%, or 5% i luctuations are continued.
- If the pump is started where the ambient temperature is around 0 °C, a high frequency noise may be heard. The noise wil naturally go away in a short time and does not indicale abnoma operation. If a high pitch noise continues for more than 30 minutes, consut with your dealer or a qualified repair person.
- Please consult with ORION if the product is to be operated at an elevation above 1000 m.
| High Vacuum Models Model | |||||
|---|---|---|---|---|---|
| KCE120F-VH-01 | KCE190F-VH-01 | KCE310F-VH-01 | |||
| KCE120F-VH-02 | KCE190F-VH-02 | KCE310F-VH-02 | |||
| Motor Output | kW | 2.2 | 3.7 | 5.5 | |
| Flow Rate※1 | m3/h | 117 | 192 | 308 | |
| m3/min | 1.95 | 3.2 | 5.1 | ||
| Continuous Operating Vacuum※2 | kPa | 0 to Ultimate vacuum | 60 to Ultimate vacuum | ||
| Ultimate vacuum※2 | kPa | 94 or higher | |||
| Operating Noise Level※3 | dB | 65 | 67 | 71 | |
| Piping Connection Size | Rc1 1/2 | Rc2 | |||
| Mass※4 | kg | 320 | 345 | 520 | |
| Motor | Rated Voltage And Fiequency※5 | Three-phase 200V-50/60Hz 220V-60Hz | |||
| Output, Number of Units | 2.2KW ・ 2P×1 unit | 3.7KW ・ 2P×1 unit | 5.5KW ・ 2P×1 unit | ||
| Specifications | Top Runner compliant high efficiency motors. | ||||
| Working Environment |
Place of Installation | Indoors | |||
| Allowable Ambient Temperature※6 | ℃ | 5 to 40 | |||
| Allowable Ambient Humidity | 65 ± 20%RH(JIS Z8703) | ||||
| Operable Elevation※7 | m | 1000 or lower | |||
| Control Method | Built-in load detecting automatic speed control circuit. | ||||
| Automatic Speed Control Range | Hz | 20 to 60 | |||
| Recommended Overhaul Cyde | h | 20000 | 20000 | 30000 | |
| High Vacuum Models Model | ||||
|---|---|---|---|---|
| KCE380F-VH-01 | KCE620F-VH-01 | |||
| KCE380F-VH-02 | KCE620F-VH-02 | |||
| Motor Output | kW | 7.4 | 11 | |
| Flow Rate※1 | m3/h | 384 | 616 | |
| m3/min | 6.4 | 10.3 | ||
| Continuous Operating Vacuum※2 | kPa | 60 to Ultimate vacuum | ||
| Ultimate vacuum※2 | kPa | 94 or higher | ||
| Operating Noise Level※3 | dB | 73 | 74 | |
| Piping Connection Size | Rc2 | Rc3 | ||
| Mass※4 | kg | 545 | 800 | |
| Motor | Rated Voltage And Fiequency※5 | Three-phase 200V-50/60Hz 220V-60Hz | ||
| Output, Number of Units | 3.7KW ・ 2P×2 units | 5.5KW ・ 2P×2 units | ||
| Specifications | Top Runner compliant high efficiency motors. | |||
| Working Environment |
Place of Installation | Indoors | ||
| Allowable Ambient Temperature※6 | ℃ | 5 to 40 | ||
| Allowable Ambient Humidity | 65 ± 20%RH(JIS Z8703) | |||
| Operable Elevation※7 | m | 1000 or lower | ||
| Control Method | Built-in load detecting automatic speed control circuit. | |||
| Automatic Speed Control Range | Hz | 20 to 60 | ||
| Recommended Overhaul Cyde | h | 20000 | 30000 | |
- This is the designed flow rate based on the finder volume of the pump. Confirm the actual low rate based on the pressure-flow diagram.
- Under ambient pressure of 1 atm. When operating at high elevations, there will be a difference in operating pressure from operation at a location under 1 alm of pressure. The calculation to measure the ultimate vacuum while operating at other elevations is as follows: Ultimate Vacuum Under Pressure (Simplified) [kPa) = Specried Ultimate Degree of Vacuum [Pal – Alflude ] X 0.0115 Pam.
- Operating noise measured at an operating vacuum of 80 kPa, and is not a quaranteed value.
- The specification includes casters and the mass including the casters will be the noted mass plus an aditional 5 kg KCER20F an additional 10 ko for KCE 620.
- The power supply voltage must not have intermittent fluctuations greater than 10%, or 5% i luctuations are continued.
- If the pump is started where the ambient temperature is around 0 °C, a high frequency noise may be heard. The noise wil naturally go away in a short time and does not indicale abnoma operation. If a high pitch noise continues for more than 30 minutes, consut with your dealer or a qualified repair person.
- Please consult with ORION if the product is to be operated at an elevation above 1000 m.

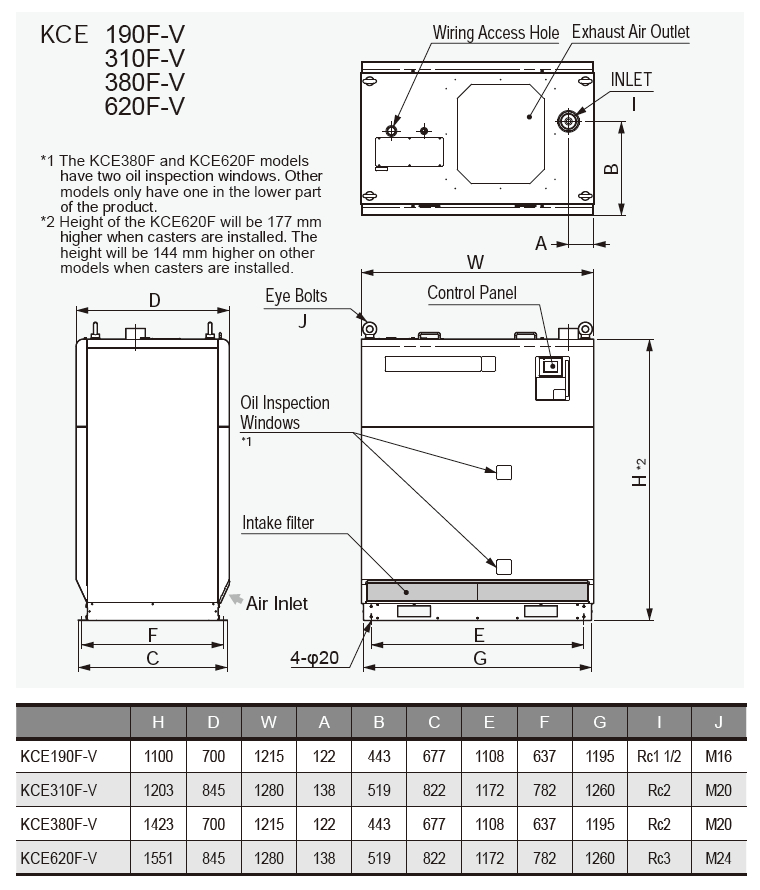

External Dimensions (Units: mm) :
Standard Models
High Vacuum Models Model
Performance Date :
- Do not operate at the conditions indicated bt the dashed pressure and flow rate lines.
Operating condition: 20℃. - Typical value for standard built-in motor and not a guaranteed value.

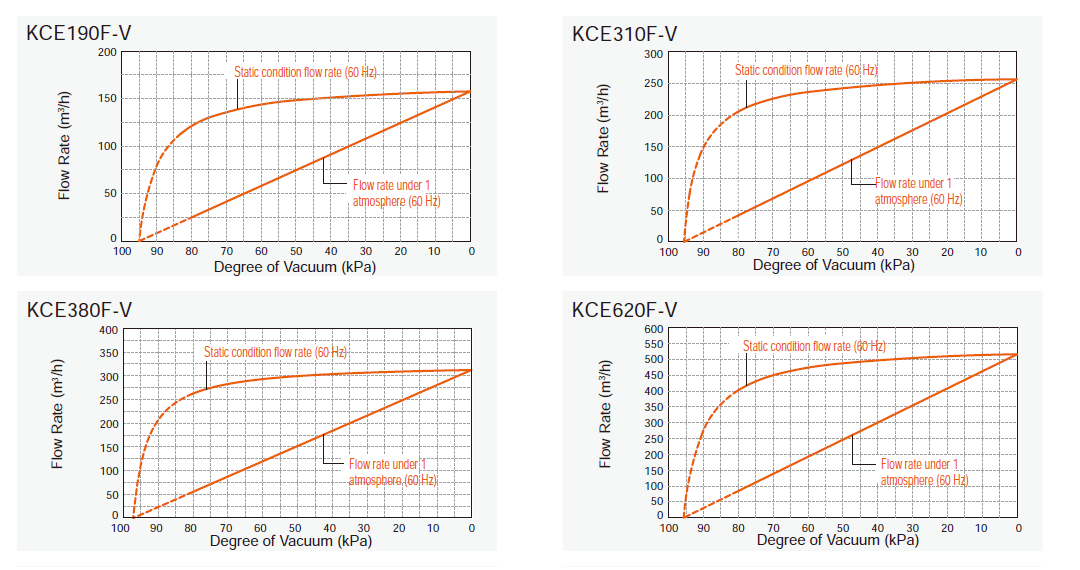

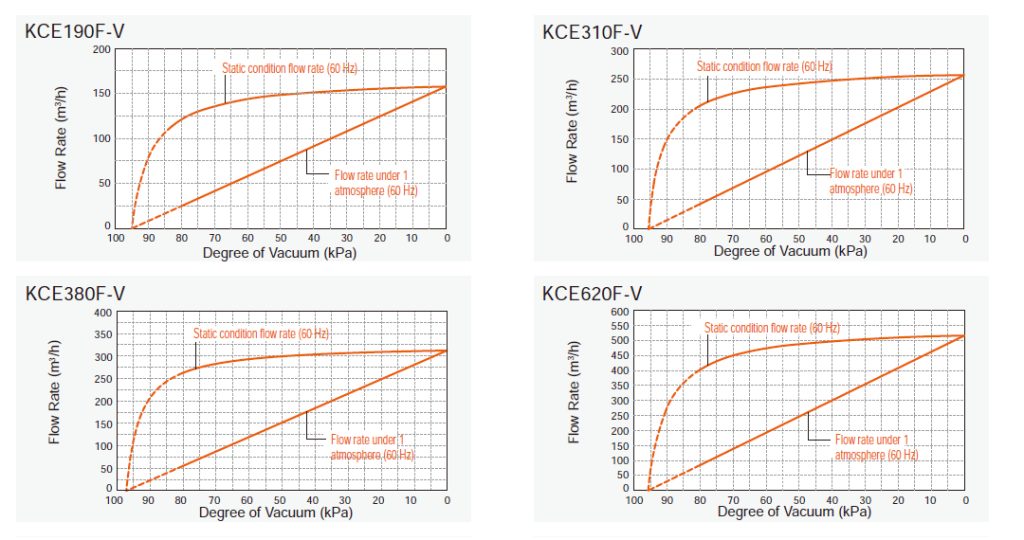

Standard Models

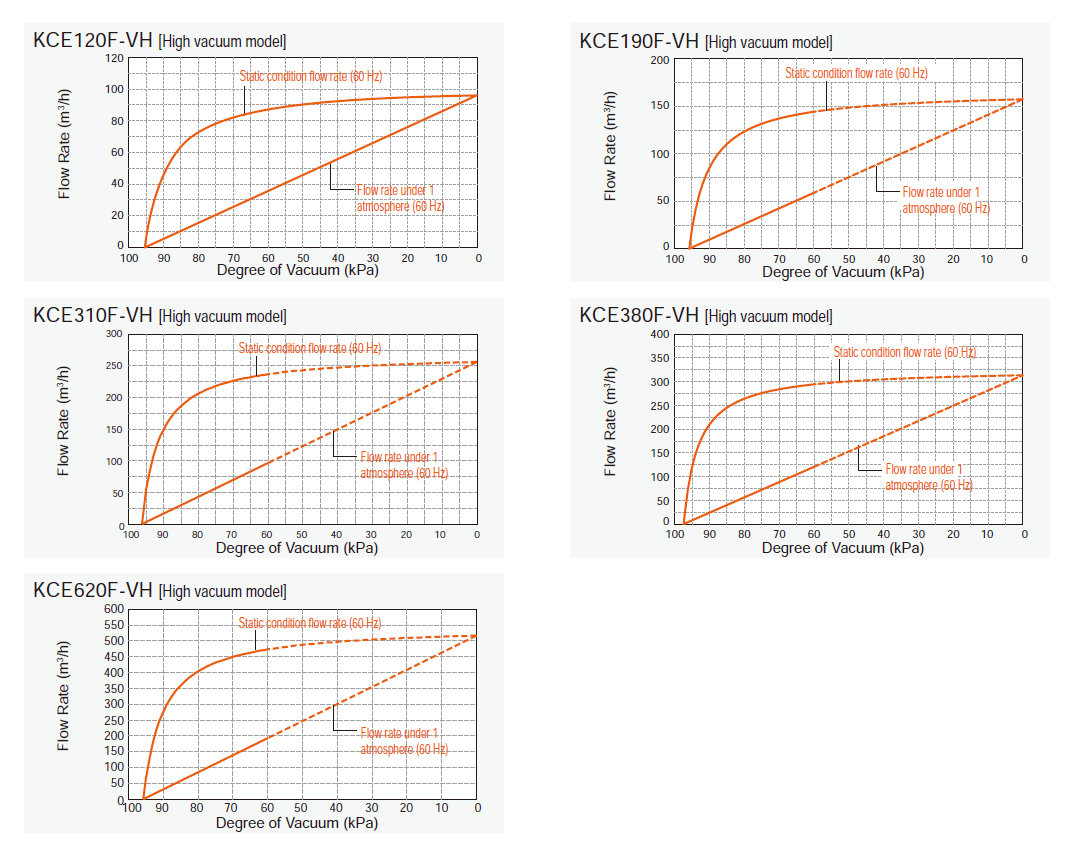

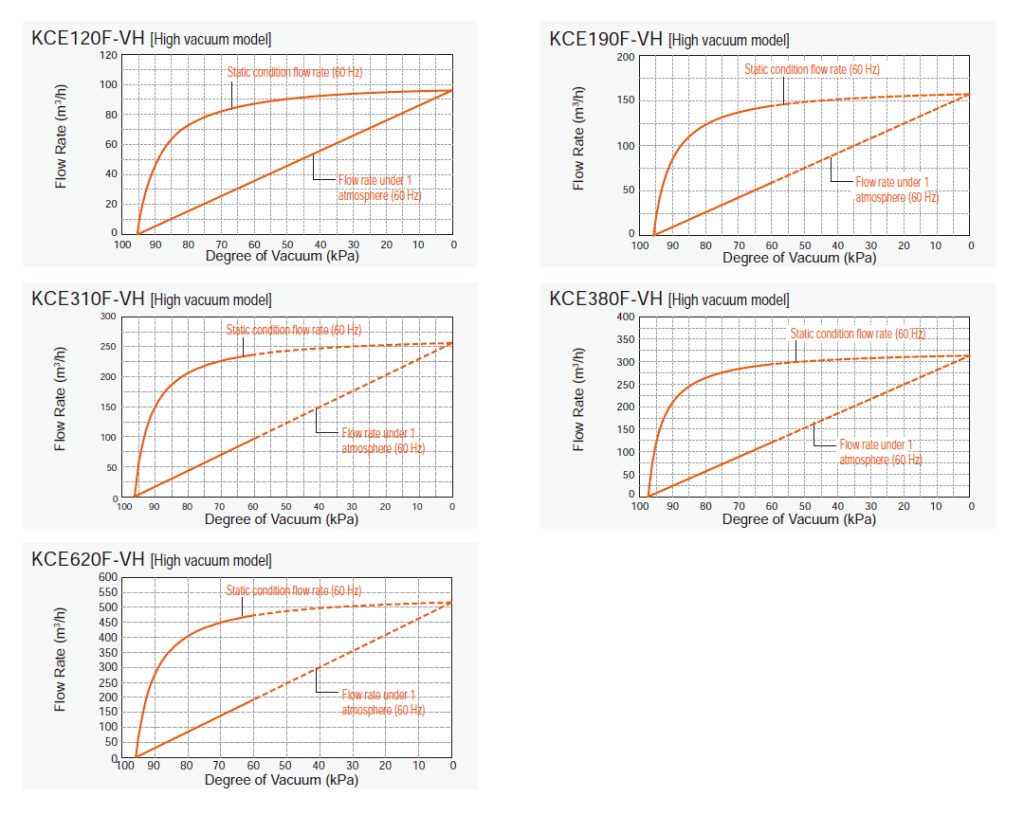

High Vacuum Models Model
