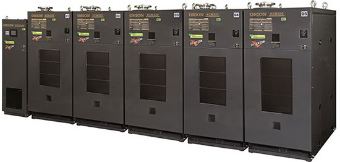

Oil-Free Vacuum Pump KCM620

KCM620

  • 01 Models: Without Casters
  • 02 Models: Includes Casters
Degree of Vacuum : 0 to 100 kPa or higher
Motor Output : 11 to 275 kW
Flow Rate : 0 to 15,400 m3/h
  • First in the Industry to Adopt a Modular Design
  • This Module-Multi Model® inverter and multi-unit control combination offers not only energy saving performance, but also a high degree of vacuum and high flow rate.

Description

Features :

Full range

Thanks to our 2-stage claw rotor and supplementary exhaust mechanism*, the ORION Oil-Free Vacuum Pump can achieve all-time high operating efficiency as well as full-range operation from 0 to 100 kPa.
※paten

Continuous operation

Thanks to the 2-stages (2-stage compression), we can achieve continuous operation at the attainable pressure of 100 kPa, despite being oil-free.

Compact, space saving design

The compact modular design that doesn’t require side maintenance space, making installation easy, anywhere.

Built to offer energy-saving wide ranging vacuum.

  • Electrical power consumption optimized over the full range of degree of vacuum (from open atmosphere to attainable vacuum).
  • Constructed to prevent over compression of exhaust air.

At high degrees of vacuum, a back-flow of air is formed in the exhaust process, and this returning air results in a loss of energy. The KCM series sports a new design that reduces energy losses by reducing the volume just before opening the exhaust port. On the other hand, when open, the volume of air increases, there is an over-increase in pressure, and power consumption will rise. “Supplementary Exhaust Ports” are established and the power consumption drops.

System Image

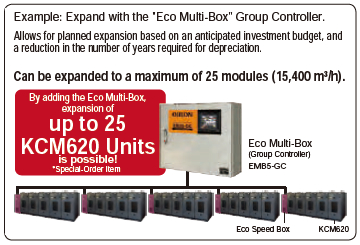

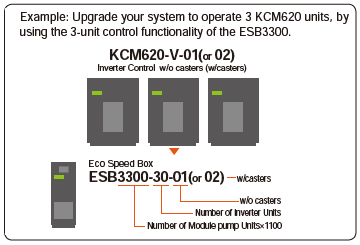

The KCM620 requires an ESB (Eco Speed Box / Multi-Unit Control and Inverter Control Board) for operation. The ESB can control up to 5 units. Expansion of up to 25 units is possible using the group controller (Eco Multi Box). (Special Order)

Intelligent Touch Panel for Easy Operation

Various operating conditions and settings can be confirmed and operated, and operating conditions can be confirmed via the visual and intuitive touch panel.

  1. Display Measured Degree of Vacuum Digital display of degree of vacuum (in 1 kPa units)
  2. Display Set Degree of Vacuum Digital for easy vacuum settings (in 1 kPa units)
  3. Display Operating Mode
  4. Display Operating Load
  5. Display Operating Conditions
  6. Display Alarm Number
  7. Display Pump Start/Stop Time

Specifications :

Module Pump Eco Speed Box
1 Unit 2 Units 3 Units 4 Units 5 Units ESB□-◯ ◯ -01
Motor Output kW 11 22 33 44 55 －
Flow Rate ※1 m3/h 616 1232 1848 2464 3080 －
m3/min 10.2 20.5 30.8 41.1 51.3 －
Ultimate Vacuum kPa 100 or higher －
kPa(abs) 1.3 or lower －
Operating Noise Level ※2 dB 75 －
Piping Connection Size 100A JIS 10K flange 100A JIS 10K flange × 2 100A JIS 10K flange × 3 100A JIS 10K flange × 4 100A JIS 10K flange × 5 －
Mass kg 800 1600 2400 3200 4000 120 to 200
Motor Output, Number of Units 11 kW ・ 4P × 1 Unit 11kW ・ 4P × 2 Unit 11kW ・ 4P × 3 Unit 11kW ・ 4P × 4 Unit 11kW ・ 4P × 5 Unit －
Specifications Top Runner compliant high efficiency motor
Working Environment Place of Instllation Indoors
Allowable Ambient Temperature※3 ℃ 5 to 40
Allowable Ambient Humidity 65 ± 20%RH (JIS Z8703)
Operable Elevation ※4 m 1000 or lower
Rated Voltage And Fiequency※5 Three-phase 200 V 50/60 Hz, 220 V -60 Hz
Control Method Inverter Built-in load detecting automatic speed control circuit.
Automatic Speed Control Range Hz 20 to 60 －
Optional Equipment Intake filter －
  1. This is the designed flow rate based on the cylinder volume of the pump. Confirm the actual flow rate based on the pressure-flow diagram.
  2. Operating noise measured at an operating vacuum of 80kPa with 200V/60Hz power supply, and is not a guaranteed value.
  3. If the pump is started where the ambient temperature is around 0 °C, a high frequency noise may be heard. The noise wil naturally go away in a short time and does not indicate abnormal operation. If a high pitch noise continues for more than 30 minutes, consult with your dealer or a qualified repair person.
  4. Please consult with ORION if the product is to be operated at an elevation above 1000 m.
  5. The power supply voltage must not have intermittent fluctuations greater than 10%, or 5% if fluctuations are continued.

Please consult your dealer regarding water-cooled specifications.

External Dimensions (Units: mm) :

Intake Filter VF500 to VF3000 Spec. External Diagram

This filter Prevents particulate from entering the vacuum pump.
The ORION KCM620 oil free vacuum pump does not include an intake filter. Please choose the filter that best suits your working environment.

Power Graph :

  • Typical value for standard built-in motor and not a guaranteed value.
