Description
Features :
Mid-range※
Ultimate pressure of 100 Pa [abs] or lower.
(※According to JIS Z8126-1.)
Compact Design
Low-lying design for easy fitting into other equipment.
Oil-Free & Long Life
Clean exhaust air that doesn’t dirty your work environment with oil.
32,000-hour overhaul cycle.
(Requires maintenance every 8,000 hours. Refer to the instruction manual for details.)
Comes Standard Equipped with Intake Filter

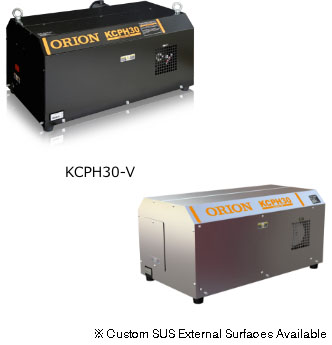

KCPH30-V（Include Parts)
Intake Filter: VF30-02
- Connection Size: Rp 1/2
- Filtration Degree: 5 µm
- Filter Element Material: Polyester
KCPH60-V（Incl. with Unit)
Intake Filter: VF100-02
- Connection Size: R1 1/4
- Filtration Degree: 5 µm
- Filter Element Material: Polyester
Applications :
- Vacuum Forming
- Vacuum Packaging
- Deaeration
- Leak Testing
- Vacuum Cleaning and Drying
- Food Cooling
- Impregnation
- Gas Displacement
- Medical Aspiration
Specification :
| KCPH30-V-01A-50/60※1 | KCPH60-V-01A-50/60※1 | |||
|---|---|---|---|---|
| Motor Output | kW | 1.5 | 3.0 | |
| Flow Rate (50/60 Hz)※2 | m3/h | 29.0/29.7 | 58.0/59.3 | |
| m3/min | 0.48/0.50 | 0.97/0.99 | ||
| Ultimate Vacuum | Pa[abs] | 100 or lower | ||
| Operating Noise Level (50/60 Hz)※3 | dB | 74/75 | 79 | |
| Piping Connection Size※4 | NSPC 1/2 | R1 1/4 | ||
| Mass | kg | 57 | 185 | |
| Motor | Rated Voltage And Frequency※5 | Three-phase 200V-50/60Hz 220V-60Hz 230V-60Hz | ||
| Output, Number of Units | 1.5kW・4P×1 Unit | 1.5kW・4P×2 Unit | ||
| Specifications | Top Runner compliant, high efficiency motors | |||
| Working Environment | Place of Installation | Indoors | ||
| Allowable Ambient Temperature | ℃ | 5 to 40 | ||
| Allowable Ambient Humidity | %RH | 30 to 70 | ||
| Operable Elevation ※6 | m | 1000 or lower | ||
| Accessory (Sold Separately) | Intake filter | Intake filter (Incl. with Unit) |
||
- Models for 50 Hz and 60 Hz regions are different.
- The flow rate is the theoretical value based on the designed pumping capacity. Please confirm the actual flow rate on the Discharge Air Curve Chart.
- The attainable value is the actual value measured at 200 V, however this is not a guaranteed value.
- NPSC1/2 has a thread pitch very similar to that of Rc1/2, and therefore R1/2 threaded connections can be used.
- The allowable intermittent power supply voltage fluctuation range is +10% of the specified voltage and the allowable sustained supply voltage fluctuation range is ±5% of the specified voltage
- Please consult with ORION if the product is to be operated at an elevation above 1000 m.
External Dimensions (Units:mm) :
KCPH30-V-01A-50/60
KCPH60-V-01A-50/60
Discharge Air Curve :
- Operating Conditions:20℃, Static condition flow rate.
- Typical value for standard built-in motor and not a guaranteed value.
- Graph shows absolute pressure.
KCPH30-V-01A-50/60
KCPH60-V-01A-50/60
Accessory (Sold Separately) :
Water Separation Silencer Set
- Part No.：03087607010
Air Flush Kit
- Part No.：0A004109000
