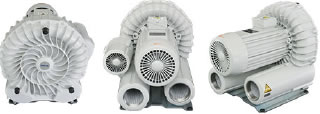

KCPL Two-Stage Side Channel Dry Vacuum Pump

KCPL160-V-06A / KCPL200-V-06A
KCPL260-V-06A

Ultimate Degree of Vacuum : to 44 kPa
Motor Output : to 6.6 kW
Maximum Flow Rate : to 305 m3/h

Description

Features :

Can achieve a degree of vacuum higher than typical side channel blowers thanks to its single cylinder two-stage construction.

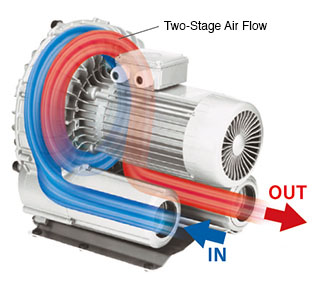

Two-Stage Air Flow

IE3 Different Voltage Standard Targeted Item

IE3-target high efficiency motor with a 200 to 400 V voltage range.
※ Please contact us regarding UL qualification.

Complete Freedom of Installation Location/Arrangement

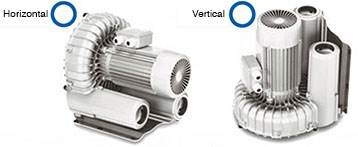

Can choose horizontal or vertical applications and installation locations.

Integrated Safety Valve Construction

We’ve adopted an all-in-one design based upon the main body of the product

Specifications :

Model Standard Model
KCPL160-V-06A KCPL200-V-06A KCPL260-V-06A
Flow Rate (50/60 Hz) ※1 m3/min 2.7/3.2 3.3/3.9 4.3/5.1
m3/h 160/190 195/235 260/305
Ultimate Degree of Vacuum ※2 kPa 41/41 44/44 41/40
Operating Noise Level (50/60 Hz) ※3 dB 70/70 71/73 70/70
Piping Connection Size dB G2 1/2 G3 G3
Mass kg 46 57 67
Motor Rated Power Supply @ Frequency ※4 Three-phase 200/350 V @ 50 Hz, 200V/220V/350V/400V-60Hz
Output / No. of Poles × No. of Units 3.0/3.6kW·2P 4.0/4.8kW·2P 5.5/6.6kW·2P
Specifications IE3 class high efficiency motor
Working Environment Installation Location Indoors
Permissible Ambient Temp ※5 ℃ -10 to 40
Permissible Ambient Humidity 65 ±20%
Operable Elevation ※6 m Max. or lower
Included Parts Safety Valve
Optional Equipment Intake Filter / Air Muffler (Exhaust Silencer)
  1. The flow rate is a theoretical value based on the designed pumping capacity. See the Power Graphs for the actual flow rate.
  2. Pressures indicated are when operating the pump under 1 ATM. (Correction required depending on installed elevation.)
  3. Operating noise is measured at 25 kPa, and is not a guaranteed value.
  4. The allowable voltage fluctuation is ±10% of the rated voltage.
  5. Please consult ORION regarding operation at altitudes higher than 800 m.

External Diagram (Units: mm) :

Power Graph :

KCPL160-V-06A
KCPL200-V-06A
KCPL260-V-06A
