Description
Features :
Contactless Construction for Long Life

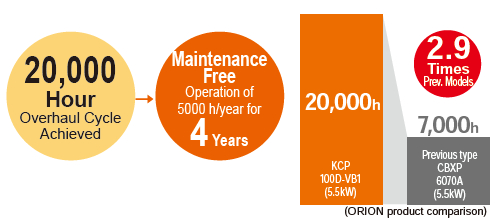

In our contactless construction, our specially designed high-efficiency rotor does not contact the cylinder. We’ve achieved long life operation because there are not consumable parts like those found inside rotary vane pumps.
- 5000 h/year = 20 h/day × 250 day/year.
- Gearbox oil change (every 5000 h), filter element replacement, and other periodic inspections are required.
Choosing the aftercooler spec. Greatly reduces the exhaust temperature.
The aftercooler equipped KCP100D-VB1-01A can exceed exhaust temperatures of 45 ℃.
Exhaust Air is Clean Air
Zero Abrasive Particulate
Vaneless means clean air with zero abrasive particulate.
Zero Oil
The pump room is completely dry. Zero-Oil Clean Air.
Specifications :
| Aftercooler Included | Aftercooler Not Included | |||
|---|---|---|---|---|
| KCP100D-VB1-01A | KCP100D-VB2-01A | |||
| Motor Output | kW | 5.5 | ||
| Flow Rate (50/60 Hz) ※1 | m3/h | Vacuum: 97/118; Blower: 97/118 | ||
| m3/min | Vacuum: 1.6/2.0; Blower: 1.6/2.0 | |||
| Continuous Operating Vaccum ※2 | kPa | 60 or less | ||
| Continuous Pressure ※3 | kPa | 70 or less | ||
| Exhaust Tempreture ※4 | ℃ | 45 or less | 125 or less | |
| Operating Noise Level ※5 | dB | 87 | ||
| Piping Connection Size | Intake side: Rc 1 1/4, Exhaust: Rc 1 1/4 | |||
| Mass | kg | 185 | 165 | |
| Motor | Rated Voltage and frequency※6 | Three-phase 200 V @ 50/60 Hz, 220 V @ 60 Hz | ||
| Output, Number of Units | 5.5 kW / 2P × 1 Unit | |||
| Specifications | Top Runner compliant, high efficiency motors | |||
| Working Environment | Place of Installation | Indoors | ||
| Allowable Ambient Temperature※7 | ℃ | 0 to 40 | ||
| Allowable Ambient Humidity | 65 ±20%RH(JIS Z8703) | |||
| Operable Elevation ※8 | m | 1000 or lower | ||
| Accessory (Sold Separately) | Vacuum controller, Hour meter, pressure controller, compound gauge | |||
- This is the designed flow rate based on the cylinder volume of the pump. Confirm the actual flow rate based on the pressure-flow diagram.
- Upper limit of the sustainable degree of vacuum of the pump. Pressures indicated are when operating the pump under 1 atm. When operating at atmospheric pressure in areas of high elevation, there will be a difference in the actual degree of vacuum compared to operating at atmospheric pressure at sea level. Accordingly, the actual ultimate vacuum will be lower than the noted value. Simplified Correction Formula for Ultimate Vacuum [kPa] = Written Operating Value (from the specifications chart) [kPa] – Elevation [m] < 0.0115 [kPa/m]
- Upper limit of continuous operable exhaust pressure. Do not operate the pump above this limit. Doing so can reduce the lifespan of the pump and may result in breakdown or an accident.
- The indicated temperature is the rise in temperature over the ambient temperature.
- Noted operating noise level is when using an ORION motor.
- The power supply voltage must not have intermittent fluctuations greater than 10%, or 5% if fluctuations are continued.
- If the pump is started where the ambient temperature is around 0 °℃, a high frequency noise may be heard. The noise will naturally go away in a short time and does not indicate abnormal operation. If a high pitch noise continues for more than 30 minutes, consult with your dealer or a qualified repair person.
- Please consult with ORION if the product is to be operated at an elevation above 1000 m.
| KCP150D-VB-01A | |||
|---|---|---|---|
| Motor Output | kW | 5.5 | |
| Flow Rate (50/60 Hz) ※1 | m3/h | 158/192 | |
| m3/min | 2.6/3.2 | ||
| Continuous Operating Vaccum ※2 | kPa | 0 – 60 (1 atm or lower) | |
| Continuous Pressure ※3 | kPa | 0 – 60 | |
| Operating Noise Level ※4 | dB | 72/79 | |
| Piping Connection Size | Intake: Rp 1 1/2, Exhaust: R1 1/2 | ||
| Mass | kg | 165 | |
| Motor | Rated Voltage and frequency※5 | Three-phase 200 V – 50/60 Hz, 220 V – 60 Hz | |
| Output, Number of Units | 5.5 kW / 2P × 1 Unit | ||
| Specifications | Top Runner compliant high efficiency motors | ||
| Working Environment | Place of Installation | Indoors | |
| Allowable Ambient Temperature※6 | ℃ | 0 – 40 | |
| Allowable Ambient Humidity | 65 ±20%RH(JIS Z8703) | ||
| Operable Elevation ※7 | m | 1000 or lower | |
| Accessory (Sold Separately) | Intake filter / Vacuum controller / Pressure controller / Hour meter | ||
| Optional Equipment | Compound gauge | ||
- This is the designed flow rate based on the cylinder volume of the pump. Confirm the actual flow rate based on the pressure-flow diagram.
- Under ambient pressure of 1 atm.
- Upper limit of continuous operable exhaust pressure.
- Values are actual measured values using the standard built-in ORION motor, operating at a degree of vacuum of 40 kPa and a pumping pressure of 20 kPa. These are not warranted values.
- The power supply voltage must not have intermittent fluctuations greater than 10%, or 5% if fluctuations are continued.
- If the pump is started where the ambient temperature is around 0 ℃, a high frequency noise may be heard. The noise will naturally go away in a short time and does not indicate abnormal operation. If a high pitch noise continues for more than 30 minutes, consult with your dealer or a qualified repair person.
- Please consult with ORION if the product is to be operated at an elevation above 1000 m.
External Dimensions (Units: mm) :
KCP100D
KCP150D
Performance Date :
- Do not operate at the conditions indicated by the dashed pressure and flow rate lines.
Operating condition: 20℃. - Typical value for standard built-in motor and not a guaranteed value.
KCP100D
KCP150D
