Description
Product Description :
MODEL INDENTIFICATION
JKD-P – 50 – SP – 5 – 5 – V – U – Ti
1 2 3 4 5 6 7 8 9
| 1 | MODEL | JKD-P |
| 3 | IN/OUTLET | 20-32*20 ; 25-40*25 ; 50-50*40; 65-80*65 |
| 4 | SPECIFIC GRAVITY | SP-1.4 |
| 5 | POWER | ¼HP,½HP,1HP,2HP,3HP, 5HP, 7.5HP, 10-10HP |
| 6 | FREQUENCY | 5-50HZ 6-60HZ |
| 7 | O-RING | E-EPDM V-VITON N-NBR |
| 8 | MATERIAL | U- UPE(Ultra high molecular weight polyethylene) |
| 9 | SHAFT MATERIAL | 4-SUS304 6-SUS316 Ti-Ti |
Detailed Description:
1. This product is our newly developed pump in 2019, material are manufactured from Ultra high molecular weight polyethylene(UPE),will can made the pump wear resistance, corrosion resistance, lifespan;
. Wear resistance ranks first in plastics, 7 times higher than carbon steel, 4 times higher than PTFE;
. Corrosion resistance: It can resist various corrosive media and organic solvent media within a certain temperature and humidity range, and has extremely high chemical stability;
.UPE’s low temperature performance is excellent, and it is malleable at the temperature of liquid helium ;
.Widely used in the semiconductor industry;
2.Strong embedded impeller: High pressure;

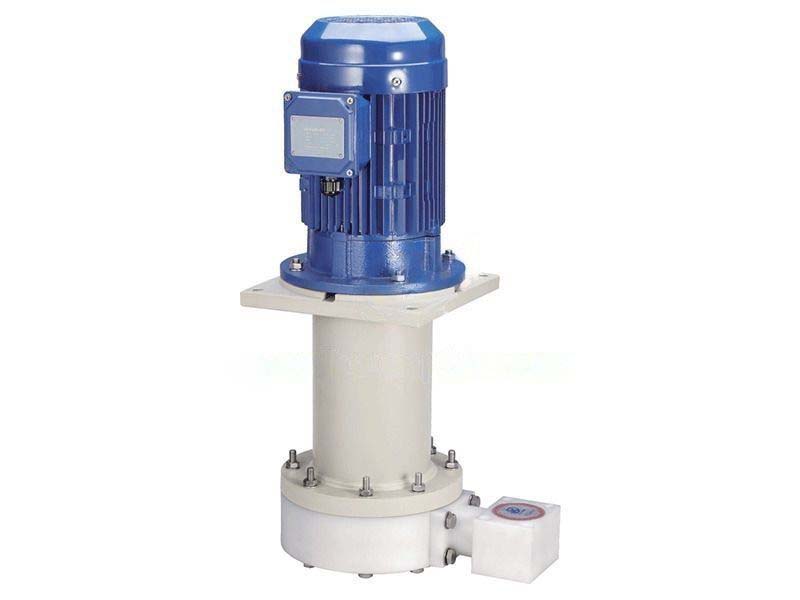

3.The sand blasting vertical pump -JKD-P model for pumping chemical solution which contain dirt particles;
4.It is designed to installed in and outside tank and can be fitted together with filter system;
5.This model -JKD-P sand blasting vertical pump no damaged in drying-running;
6.For corrosive environment, it is recommended to use Titanium bolt and nuts and Epoxy paint on motor body to prolong motor lifespan; different brands motor of choice to your needs, for example: QUCHI, TECO and ABB;
Specifications :
| MODEL | IN/OUTLET | 50HZ | POWER | |
|---|---|---|---|---|
| (mm) | MAX.HEAD(m) | MAX.CAP(L/min) | kw | |
| JKD-P-20SP¼ | 32*20 | 5 | 80 | 0.18 |
| JKD-P-25SP½ | 40*25 | 7 | 95 | 0.37 |
| JKD-P-25SP-1 | 40*25 | 8 | 110 | 0.75 |
| JKD-P-40SP-2 | 50*40 | 10.5 | 160 | 1.5 |
| JKD-P-40SP-3 | 50*40 | 11 | 230 | 2.2 |
| JKD-P-50SP-5 | 65*50 | 14.5 | 220 | 3.75 |
| JKD-P-65SP-7.5 | 80*65 | 18 | 330 | 5.5 |
| JKD-P-65SP-10 | 80*65 | 20 | 400 | 7.5 |
Features :
1. This product is our newly developed pump in 2019, material are manufactured from Ultra high molecular weight polyethylene(UPE),will can made the pump wear resistance, corrosion resistance, lifespan;
. Wear resistance ranks first in plastics, 7 times higher than carbon steel, 4 times higher than PTFE;
. Corrosion resistance: It can resist various corrosive media and organic solvent media within a certain temperature and humidity range, and has extremely high chemical stability;
.UPE’s low temperature performance is excellent, and it is malleable at the temperature of liquid helium ;
.Widely used in the semiconductor industry;
2.Strong embedded impeller: High pressure;
3.The vertical chemical pump -JKD-P series widely used in high corrosive environment & acid chemical process such as etching, cooling circulating and plating;
4.It is designed to installed in and outside tank and can be fitted together with filter system;
5.This series vertical pump no damaged in drying-running;
6.For corrosive environment, it is recommended to use Titanium bolt and nuts and Epoxy paint on motor body to prolong motor lifespan; different brands motor of choice to your needs, for example: QUCHI, TECO and ABB;
Application :
JKD-P series sand blasting vertical pump for pumping chemical solution which contain dirt particles ;
Industry: Sewage industryl
