Description

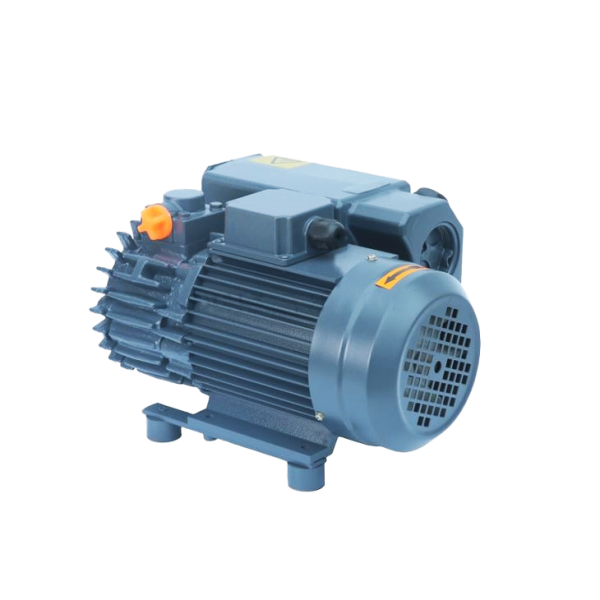

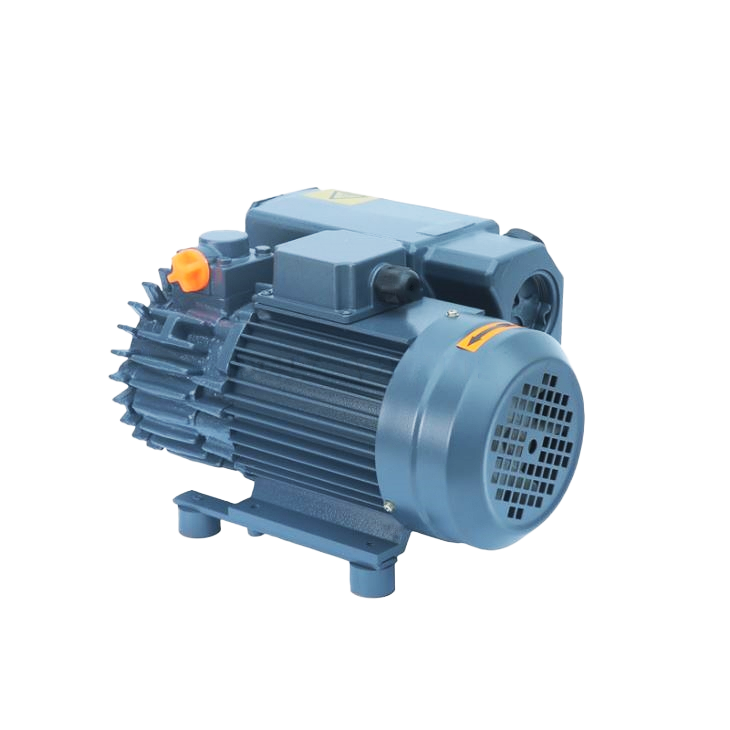

SV single stage rotary vane vacuum pumps combining with many years of experience in vacuum engineering and the latest international vacuum technology developed to meet requirements of both the industry and the environment. They are being used in all areas of vacuum engineering. They are equally suited for both industrial production and research applications. They may be used to generate a rough and medium vacuum or as backing pumps in pump combinations with Roots pumps or high vacuum pumps. The comprehensive range (pumping capacity ranging from 8 to 750 m 3 / h) allows every customer to select the right pump for his particular needs.
Benefits:
Reliable: robust construction,reliable operation,proven performance.
Environmental: clean exhaust, no pollution. Equipped with check valve and oil anti suck-back device.
Easy Servicing: easy service routine,Compact design,Easy maintenance.
High performance: continues working in free of trouble. Low Noise. Ultimate pressure is verified.
Cooling methods: Air cooling
Working condition: clean,dry and non-explosive environment.
Low Operating costs: optimum cost-benefit ratio.
Gas Ballast Valve: it can be pumping a certain vapor when equipped gas ballast valve.
Driven by standard motors. Special types available on request.
Applications:
Food processing–vacuum packaging,air drying sterilized, degassing ,grape presses for wine production.
Automotive and tire–material handling of components, vacuum forming and vacuum lifting.
Vacuum forming–from small plastic items to complicated plastic/resin components to complete objects.
Power engineering–oil transformer production,electrical elements.
Hospital/Clinic– CVS medical vacuum units.
Specifications :
| Model | Pump capacity (m3/h) |
Ultimate vacuum (Pa) |
Motor Power (KW) |
Inlet Diam (inch) | Rotary speed (rpm) |
Oil Capacity | N.W | Noise | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50HZ | 60HZ | 50HZ | 60HZ | 50HZ | 60HZ | (L) | (kg) | dB (A) | (mm) | |||
| SV-008 | 8 | 9 | 200 | 0.37 -3ph 0.55 -1ph |
G3/8 | 2800 | 3360 | 0.25 | 12 | 70 | 330*165*152 | |
| SV-010 | 10 | 12 | 200 | G1/2 | 2800 | 3360 | 0.3 | 22 | 70 | 340*210*205 | ||
| SV-016 | 16 | 19 | 200 | 0.75-3ph; 0.90-1ph |
G1/2 | 2800 | 3360 | 0.3 | 22 | 70 | 340*210*205 | |
| SV-020 | 20 | 24 | 200 | G1/2 | 2800 | 3360 | 0.5 | 25 | 70 | 450*235*210 | ||
| SV-020N | 20 | 24 | 200 | G1/2 | 2800 | 3200 | 0.5 | 25 | 68 | 340*225*205 | ||
| SV-025 | 25 | 30 | 200 | 0.75-3ph 0.90-1ph |
G3/4 | 2800 | 3360 | 0.5 | 28 | 64 | 495*235*210 | |
| SV-040 | 40 | 48 | 50 | 1.5 | G11/4 | 1440 | 1728 | 1.0 | 50 | 67 | 660*300*270 | |
| SV-040N | 40 | 48 | 50 | 1.5 | G11/4 | 1440 | 1728 | 1.0 | 45 | 67 | 520*300*270 | |
| SV-063 | 63 | 75 | 50 | 2.2 | G11/4 | 1440 | 1728 | 2.0 | 71 | 68 | 695*420*295 | |
| SV-063N | 63 | 75 | 50 | 2.2 | G11/4 | 1440 | 1728 | 2.0 | 50 | 68 | 565*420*295 | |
| SV-100 | 100 | 120 | 50 | 3.0 | G11/4 | 1440 | 1728 | 2.0 | 78 | 72 | 735*420*295 | |
| SV-150 | 150 | 180 | 50 | 4.0 | 5.5 | G2 | 1440 | 1728 | 3.5 | 110 | 70 | 765*470*340 |
| SV-160 | 160 | 192 | 50 | 4.0 | 5.5 | G2 | 1440 | 1728 | 4.5 | 130 | 74 | 805*520*410 |
| SV-200 | 200 | 240 | 50 | 5.5 | 5.5 | G2 | 1440 | 1728 | 4.5 | 178 | 76 | 825*520*410 |
| SV-250 | 250 | 300 | 50 | 5.5 | 7.5 | G2 | 1440 | 1728 | 7.0 | 200 | 76 | 1000*550*410 |
| SV-300 | 300 | 360 | 50 | 7.5 | 7.5 | G2 | 1440 | 1728 | 7.0 | 200 | 76 | 1200*550*410 |
| SV-630 | 630 | 750 | 10 | 18.5 | 22 | G3 | 1000 | 1200 | 25 | 650 | 80 | 1780*880*730 |
