Description
Product Description :
MODEL INDENTIFICATION
JKL – C – 105 – 40 – F – SUS316 – N
1 2 3 4 5 6 7
| 1 | MODEL | JLK |
| 2 | Type of filter core | C-Pressure core filter U-Bag filter |
| 3 | Core NO. | 105-10”*5,108-10”*8,107-10”*7,205-20”*5,207-20”*7,307-30”*7,308-30”*8;7161-7*16*1,7321-7*32*1,8321-8*32*1, |
| 4 | In/outlet | 40-1.5” 50-2” 65-2.5” |
| 5 | Type of In/outlet | F-Flange |
| 6 | Material of filter body | SUS304 SUSU316 |
| 7 | Material of seal packing | N -NBR E- EPDM V- VITON |
| 8 | Type of stand | Fixed or Move |
The stainless steel chemical filter cartridge materials made from sus304,sus316,sus316L and Ti;
Stainless steel filter cartridge will offer to resistance to higher pressure , higher temperature and corrosion of the chemicals;
The filter cartridge is available in different features and size are depending on the application,application that involve fluid at very high temperature ,deal with chemicals that can react with pp,with fliuds flowing at very high pressure;
Suitable for use from – 150ºC to 300ºC
Wide range of ratings from 3µm through to 840µm;
They are the components that made the device corrosion resistant with very little maintenance for long life;
Stainless steel filter cartridges are for use in a wide range of applications and industries, suitable for use in both liquids and gases;
Specifications :

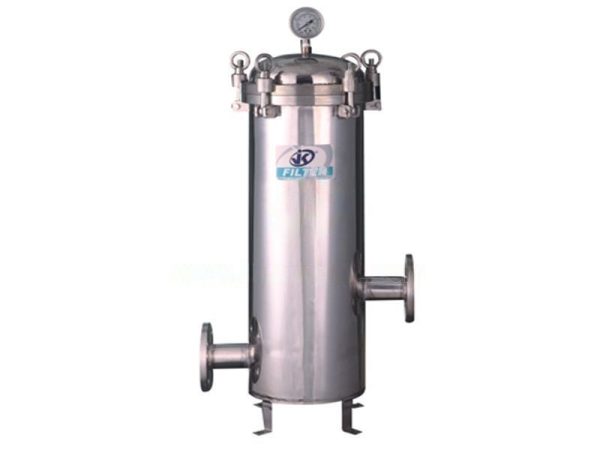

Stainless steel chemical filter Cartridge:
The filter cartridge with open design, do not need to use any tools to replace the filter;
Cartridge material: SUS304, SUS316, SUS316L and Ti, with internal teeth and movable flange;
Suitable filter cartridges: 1pcs, 2pcs, 3pcs, 5pcs, 7pcs, 9pcs, 11pcs, 13pcs, 15pcs
Filter quantitly: 10″, 20″, 30″, 40″
Operating press(Bar): 10
Flow rate: 0.001~100U
Seal material: PTFE
Connection type: DN/BSP
Features :
The stainless steel chemical filter cartridge materials made from sus304,sus316,sus316L and Ti;
Stainless steel filter cartridge will offer to resistance to higher pressure , higher temperature and corrosion of the chemicals;
The filter cartridge is available in different features and size are depending on the application,application that involve fluid at very high temperature ,deal with chemicals that can react with pp,with fliuds flowing at very high pressure;
Suitable for use from – 150ºC to 300ºC
Wide range of ratings from 3µm through to 840µm;
They are the components that made the device corrosion resistant with very little maintenance for long life;
Stainless steel filter cartridges are for use in a wide range of applications and industries, suitable for use in both liquids and gases;
Application :
Excellent application to circulate filter operations for plating liquid ,chemical liquid and pure water;
