Description
Product Description :
MODEL INDENTIFICATION
JKK – 1003 – 0.75- F – F – V
1 2 3 4 5 6
| 1.MODEL | JKK |
| 2.CORE NUMBER | 1003-10”*3 |
| 3.POWER OF PUMP | 0.75kw 1.5kw 2.2kw 3.7kw |
| 4.MATERIAL OF PUMP | F -FRPP P- PVDF |
| 5.TYPE OF IN/OUTLET | U-UNION F-FLANGE |
| 6.MATERIAL OF O-RING | V -VITON E- EPDM |

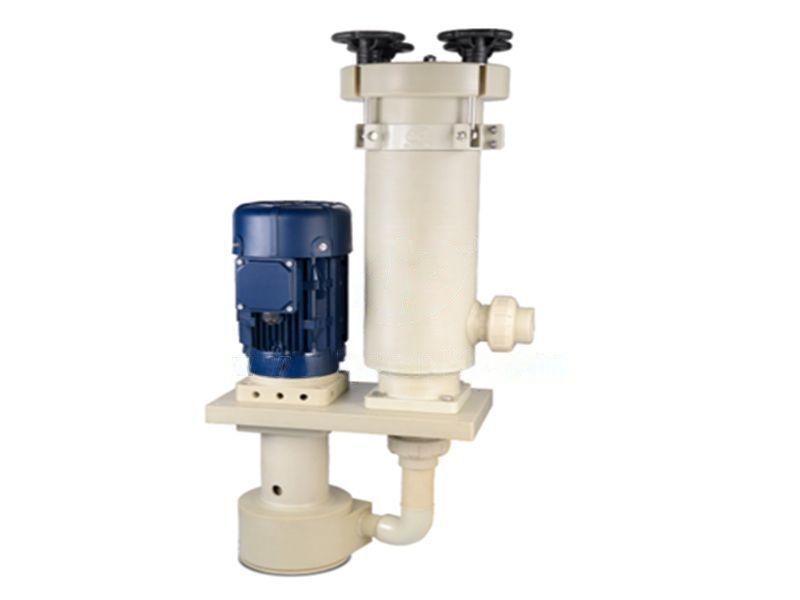

The filter suitable for LCD/LED/PCB precision filtration equipment level line.
The ultra thick filter housing with enhanced fixed frame clamp, it can fully meet the pressure of work demand. Match up JKPUMPS idling and corrosion resistant pump, high efficiency and the performance will be more stable. Small volume, easy to install, easy to maintain.
Specifications :
| Model | Capacity(L/min) | Filter Material | Cartridges | Temperature | Pump Power(KW) | In/Outlet(mm) |
|---|---|---|---|---|---|---|
| JKK-1003 | 160 | FRPP/PVDF | 10”*3 | 70℃/100℃ | 0.75 | 40*40 |
| JKK-1003 | 180 | FRPP/PVDF | 10”*3 | 70℃/100℃ | 1.5 | 40*40 |
| JKK-1003 | 330 | FRPP/PVDF | 10”*3 | 70℃/100℃ | 2.2 | 40*50 |
| JKK-1003 | 480 | FRPP/PVDF | 10”*3 | 70℃/100℃ | 3.7 | 40*50 |
Features :
The filter suitable for LCD/LED/PCB precision filtration equipment level line.
The ultra thick filter housing with enhanced fixed frame clamp, it can fully meet the pressure of work demand. Match up JKPUMPS idling and corrosion resistant pump, high efficiency and the performance will be more stable. Small volume, easy to install, easy to maintain.
