Description

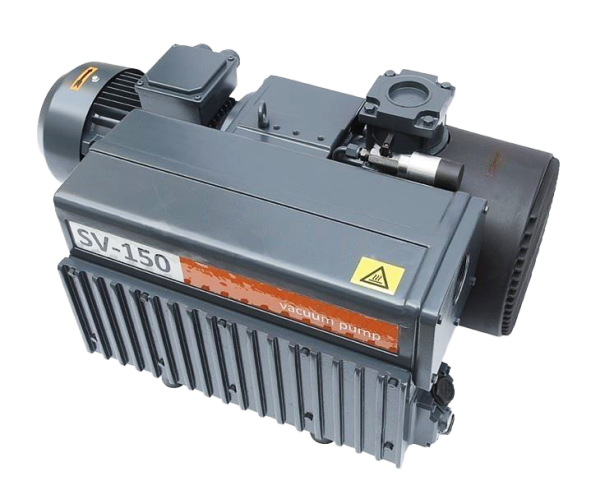

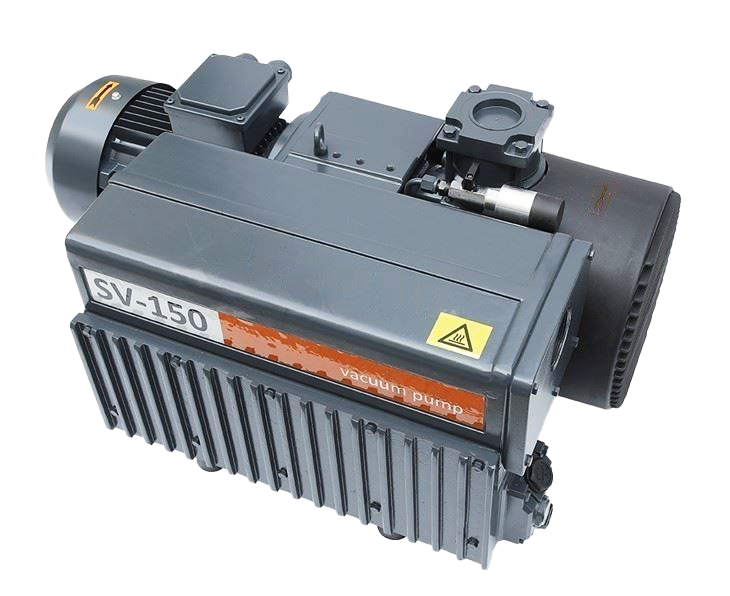

SV single stage rotary vane vacuum pump belong to the Souz Product Family of proven SV rotary vane vacuum pumps.They have been designed for a wide range of applications, such as VACUUM PACKAGING,FOOD PROCESSING and many more.
Benefits:
Ø Reliable: robust construction,reliable operation,proven performance.
Ø Environmental: clean exhaust, no pollution. Equipped with check valve and oil anti suck back device.
Ø Easy Servicing: easy service routine.
Ø High performance: Continues working in free of trouble. Low Noise. High vacuum.
Ø Air cooling
Ø Low Operating costs: optimum cost-benefit ratio.
Ø Driven by standard motors. Special types available on request.
Specifications :
| Model | Pump capacity (m3/h) |
Ultimate vacuum (Pa) |
Motor Power (KW) |
Inlet Diam (inch) | Rotary speed (rpm) |
Oil Capacity | N.W | Noise | Dimensions | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50HZ | 60HZ | 50HZ | 60HZ | 50HZ | 60HZ | (L) | (kg) | dB (A) | (mm) | |||
| SV-150 | 150 | 180 | 50 | 4.0 | 5.5 | G2 | 1440 | 1728 | 3.5 | 110 | 70 | 765*470*340 |
