Description
Product Description:

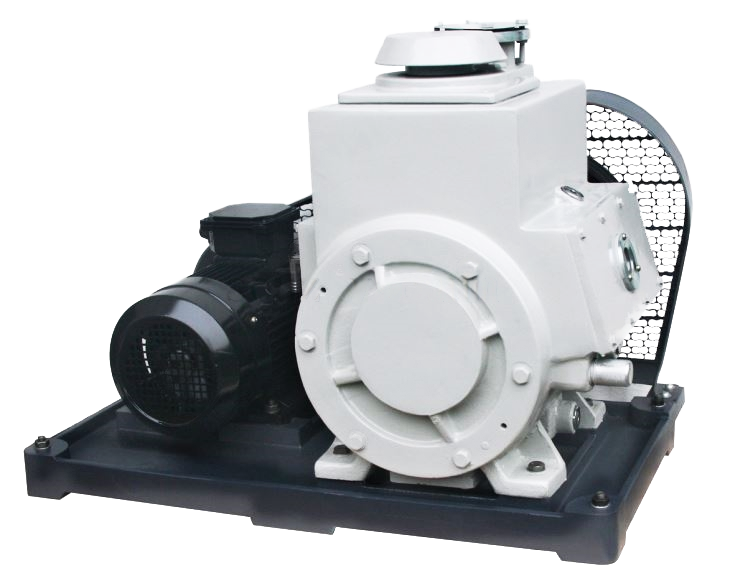

The 2X series vacuum pump is of two-stage structure, its operation performance consists of two parts, high-pressure stage and low pressure stage. Its suction port is connected with the vacuum container or other vacuum equipment to helps in-taking or draining the gas inside the container during operation. When the equipment is in vacuum, the high-pressure stage drain valve will be closed, then the gas suctioned by the high-pressure stage will be transferred to the second stage, after that, the gas will be suctioned and drained through the second stage, so that the vacuum equipment can get a certain extent vacuum. The technical parameter of the pump is 6×10-2Pa. According to the user’s operation requirements, to equip a vacuum booster pump, and this pump is used as a backing pump. Since the booster pump increased suction force, accompanied with the continuous suction of the backing pump, the equipment will obtain higher vacuum percentage.
Features:
1. Wide range of free-air capacities to match specific applications
2. Positive pressure oil system ensures proper lubrication and prevents oil starvation under high gas loads
3. Fast acting inlet valve protects internal components against oil and air contamination if the pump stops while under vacuum
4. Gas ballast valve limits internal condensation; Lets you use pump when condensate vapors are present
Application:
This series of pumps are elementary equipment for pumping air from sealed chamber.
It can be used alone,also can be used as the fore-pump,process pump or titanium pump of booster pump,roots vacuum pump,gas circulation cooling roots pump,oil diffusion pump,and molecular pump.
It is applicable to vacuum coating,vacuum heat treatment,vacuum smelting,vacuum tube,bulb,
chemicals,packing,forming,health and medical appliances,laboratory,vacuum drying machines and vacuum filtering.
SOUZ VACUUM also provides the system add-ons that further protect your pump and your environment. Select the equipment that augments your vacuum system needs – traps, oil mist eliminators, and system components.
Specifications :
| Specification Model |

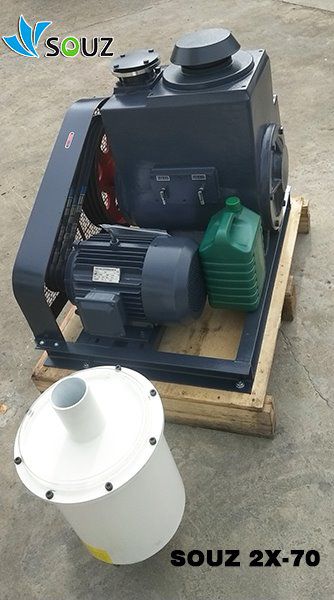

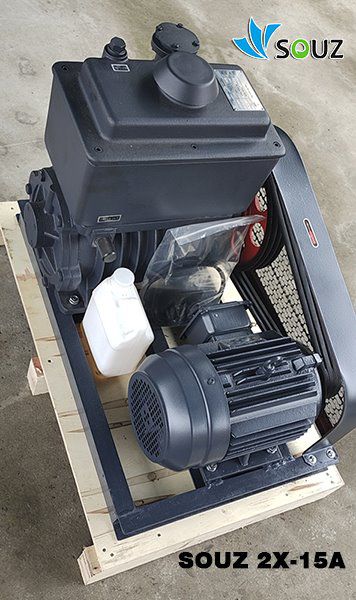

2X-4D | 2X-8A | 2X-15A | 2X-30A | 2X-70A | 2X-70B | 2X-100A | |
|---|---|---|---|---|---|---|---|---|
| Pumping speed(L/s) | 4 | 8 | 15 | 30 | 70 | 80 | 100 | |
| Pumping speed(m3/h) | 14 | 29 | 54 | 108 | 252 | 288 | 360 | |
| Ultimate pressure (Pa) |
Partial pressure | 6×10ˉ²(5×10-4Torr) | ||||||
| Total pressure | 2.66(2×10-2 Torr) | |||||||
| Rotary speed(r/min) | 450 | 320 | 320 | 450 | 420 | 360 | 400 | |
| Motor power(Kw) | 0.55 | 1.1 | 2.2 | 3 | 5.5 | 5.5 | 7.5 | |
| Working voltage(v) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | |
| Cooling Mode | Natural cooling | Natural cooling | Natural cooling | Water cooling | Water cooling | Water cooling | Water cooling | |
| Oil capacity(L) | 1.0 | 2.0 | 2.8 | 3.0 | 4.2 | 4.2 | 4.2 | |
| Recommend solenoid valve | DDC-JQ25 | DDC-JQ40 | DDC-JQ50 | DDC-JQ65 | DDC-JQ80 | DDC-JQ80 | DDC-JQ80 | |
| Noise (dB A) | 65 | 70 | 70 | 70 | 75 | 75 | 75 | |
| Weight(kg) | 60 | 158 | 202 | 230 | 480 | 450 | 450 | |
