Description
Features :
The single cylinder two-stage construction achieves maximum flow rate together with high pressure.
Two-Stage Air Flow

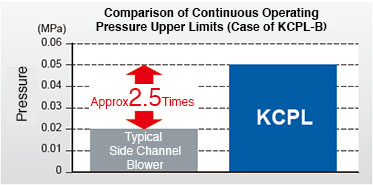

Comparison Continuous Operating Pressure Upper Limits
Our single cylinder two-stage construction has surpassed the pressure zones of other side-channel blowers to date.

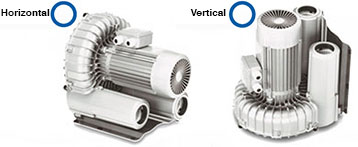

Complete Freedom of Installation Location
Can choose horizontal or vertical applications and installation locations.
Integrated Safety Valve Construction
We’ve adopted an all-in-one design based upon the main body of the blower.
IE3 Different Voltage Standard Targeted Item
IE3-target high efficiency motor with a 200 to 400 V voltage range.
Specifications :
| Model | Standard Model | ||||
|---|---|---|---|---|---|
| KCPL160-B-06A | KCPL200-B-06A | KCPL260-B-06A | |||
| Motor Output | kW | 3.0/3.6 | 4.0/4.8 | 5.5/6.6 | |
| Flow Rate (50/60 Hz) ※1 | m3/min | 2.7/3.2 | 3.3/3.9 | 4.3/5.1 | |
| m3/h | 160/190 | 195/235 | 260/305 | ||
| Continuous Exhaust Pressure (50/60 Hz) ※2 | MPa(kPa) | 0.051(51) / 0.045(45) | 0.050(50) / 0.045(45) | 0.048(48) / 0.053(53) | |
| Operating Noise Level (50/60 Hz) ※3 | dB | 72/75 | 73/75 | 70/72 | |
| Piping Connection Size | G2 1/2 | G3 | G3 | ||
| Mass | kg | 43 | 50 | 63 | |
| Motor | Rated Power Supply / Frequency ※4 |
Three-phase 200/350 V, 50 Hz, 200V/220V/350V/400V-60Hz | |||
| Output / No. of Poles × No. of Units | 3.0/3.6kW·2P | 4.0/4.8kW·2P | 5.5/6.6kW·2P | ||
| Specifications | IE3 class high efficiency motor | ||||
| Installation Environment | Installation Location | Indoors | |||
| Permissible Ambient Temp ※5 | ℃ | 0 to 40 | |||
| Permissible Ambient Humidity | 65 ±20% | ||||
| Operable Elevation ※6 | m | 1000 or lower | |||
| Included Parts | Safety Valve | ||||
| Optional Equipment | Intake Filter / Air Muffler (Intake Silencer) | ||||
- The flow rate is the theoretical value based on the designed pumping capacity. See the Power Graphs for the actual flow rate.
- Indicates the upper limit of exhaust pressure under sustained blower operation. Do not operate the blower above this limit.
Doing so can reduce the lifespan of the blower and may result in breakdown or an accident. - Value is the noise level when using an ORION motor.
- The allowable intermittent power supply voltage fluctuation range is ±10%, and the allowable sustained supply voltage fluctuation range is ±5% of the specified voltage.
- There may be a high pitch sound if the ambient temperature is near 0 ℃ when starting, but such noise will go away after a short time and does not indicate abnormal operation. If the high pitch noise continues for more than 30 minutes, consult with your dealer or a qualified repair person.
- Please consult ORION regarding operation at altitudes higher than 1000 m.
External Diagram (Units: mm) :

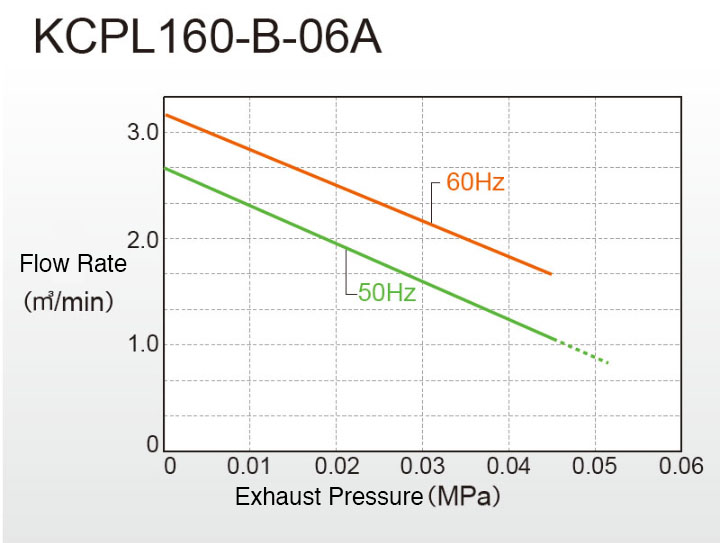

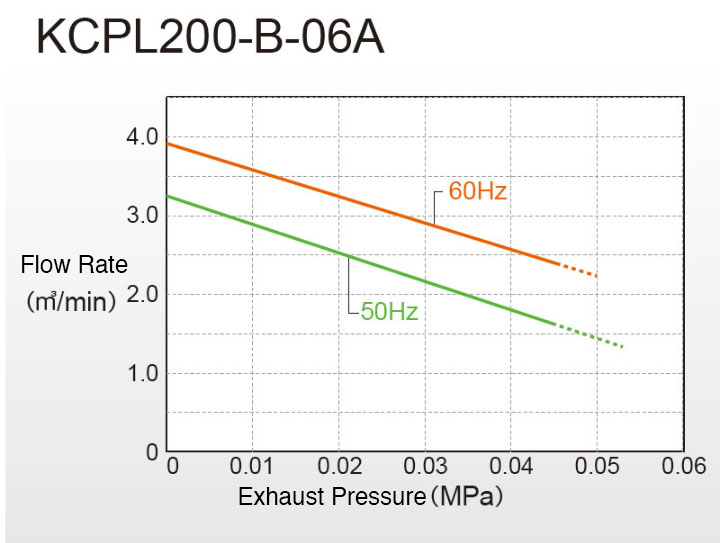

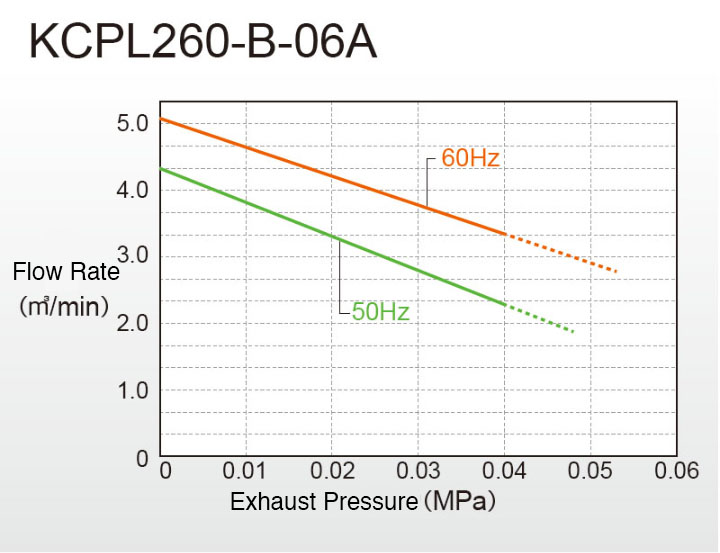

Power Graphs :
- Conditions: Measured at 1 ATM, 20 ℃, without a safety valve installed.
- The area indicated by the dotted line is where the safety valve would activate and does not indicate continuous operation.
Accessories :
| Applicable Model | Intake Filter | Air Muffler (Intake Silencer) |
|---|---|---|
| KCPL160-B | VF150-01/02 | NPP40 |
| KCPL200-B | VF250-01/02 | NPO50 |
| KCPL260-B | VF500-01/02 | NPO65 |
- In order to remove foreign matter, always install and operate an intake filter (one of the available accessories) with the Side Channel Blower.
Failure to operate with an intake filter can lead to trouble from particulate clogging within the close tolerance internal parts of the product. - The above-mentioned intake filter, air muffler and other products are general-purpose items that can work with other devices and will require a bushing or other part to adapt to the required connection diameter
