Description
Product Description :
MODEL INDENTIFICATION
JKH – L – 40 – SK – 1 – 5 – V – F
1 2 3 4 5 6 7 8
| 1 | MODEL | JKH-L |
| 2 | IN/OUTLET | 40-1½”, 50-2″ |
| 3 | SPECIFIC GRAVITY | SK-1:1 SP-1:4 |
| 4 | POWER | 1-1HP, 2-2HP, 3-3HP, 5-5HP, 7.5-7.7HP, 10-10HP |
| 5 | FREQUENCY | 5-50HZ, 6-60HZ |
| 6 | RUBBER | E-EPDM V-VITON |
| 7 | MATERIAL | F-FRPP P-PVDF |
Detailed Description:

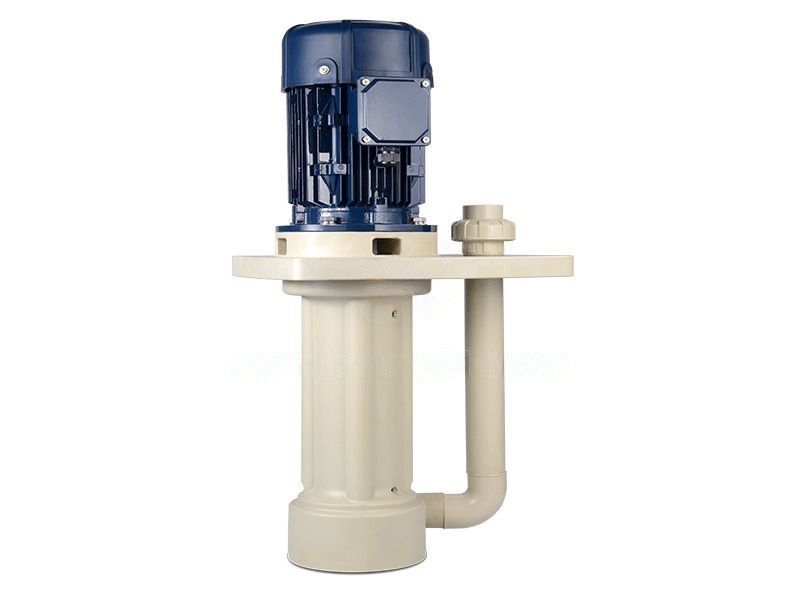

1.JKH-L series vertical sump pump are manufactured from higher grade raw material and can be define to FRPP,PVDF for customer selection.
2.JKH-L series widely used in high corrosive environment & acidic chemical process such as etching,cooling circulating & plating.
3.The motor shaft is designed and install from internally (no extension, no joint) to ensure stability and better performance as well to enable the motor to have longer lifespan.
4.It is designed to installed in and inside tank and can be fitted together with filter system.5.For corrosive environment, it is recommended to use Titanium bolt and nuts and Epoxy paint on motor body to prolong motor lifespan.
6.Max Operating Temperature: FRPP 75℃; PVDF:90℃.
Specifications :
| MODEL | SPEC | SG | IN/OUT | POWER(KW) | POLE | 50HZ | |
|---|---|---|---|---|---|---|---|
| HEAD(m) | FLOW(L/min) | ||||||
| JKH-L | 40SK-1 | 1:1 | 40*50 | 0.75 | 2 | 15 | 300 |
| JKH-L | 40SK-2 | 1:1 | 40*50 | 1.5 | 2 | 22 | 380 |
| JKH-L | 40SK-3 | 1:1 | 40*50 | 2.2 | 2 | 28 | 400 |
| JKH-L | 50SK-5 | 1:1 | 50*50 | 3.75 | 2 | 30 | 550 |
| JKH-L | 50SK-7.5 | 1:1 | 50*50 | 5.5 | 2 | 35 | 640 |
| JKH-L | 50SK-10 | 1:1 | 50*50 | 7.5 | 2 | 42 | 660 |
Features :
1.JKH-L series vertical sump pump are manufactured from higher grade raw material and can be define to FRPP,PVDF for customer selection.
2.JKH-L series widely used in high corrosive environment & acidic chemical process such as etching,cooling circulating & plating.
3.The motor shaft is designed and install from internally (no extension, no joint) to ensure stability and better performance as well to enable the motor to have longer lifespan.
4.It is designed to installed in and inside tank and can be fitted together with filter system.5.For corrosive environment, it is recommended to use Titanium bolt and nuts and Epoxy paint on motor body to prolong motor lifespan.
6.Max Operating Temperature: FRPP 75℃; PVDF:90℃.
